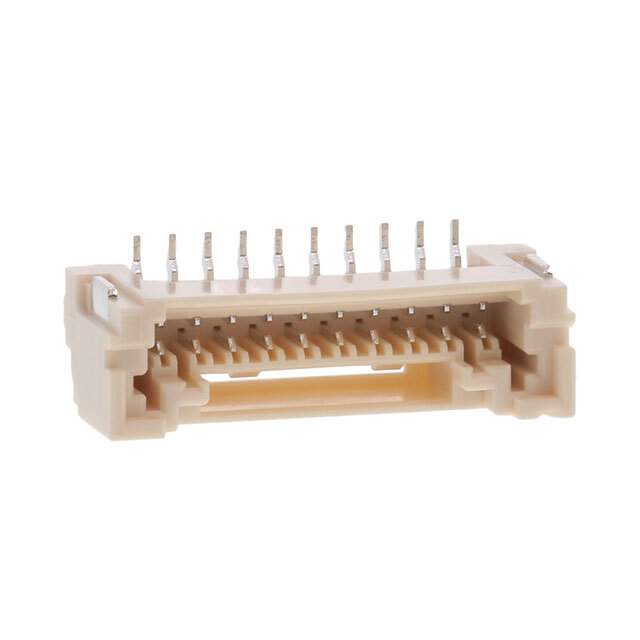

BM10B-ZESS-TBT(LF)(SN)

Name: BM10B-ZESS-TBT(LF)(SN)
Brand: JST Sales America Inc.
SKU: 997417
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM10B-ZESS-TBT(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.5MM / Connector Header Surface Mount 10 position 0.059" (1.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	ZE
Package	Tape & Reel
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.059" (1.50mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.295" (7.50mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	9.4mm
Base Product Number	BM10B-ZE
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-2388-6,BM10BZESSTBTLFSN,455-2388-2,455-2388-1,BM10B-ZESS-TBT (LF)(SN),BM10B-ZESS-TBT(LF)(SN)-
Standard Package	800
Win Source Part Number	997417-BM10B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian BM10B-ZESS-TBT(LF)(SN) CAD Model

Description

The ZE series male header connector with 10 positions is an ideal choice for your electronic projects.

Positions: 10
Voltage Rating: 100V
Contacts: Outer Shroud Contact
Fastening: Locking Ramp Fastening
Termination: Solder Termination
Contact Material: Copper Alloy
Mounting Style: Board to Cable/Wire
Pitch: 0.059 inches (1.50mm)
Insulation Color: Natural
Shrouded: 4 Walls
Temperature Range: -25°C to 85°C
Packaging: Tape and Reel
Standard Package: 800 pieces
Mated Stacking Height: 9.4mm
Insulation Material: Polyamide (PA) or Nylon
Category: Rectanglar Connectors - Headers, Male Pins
