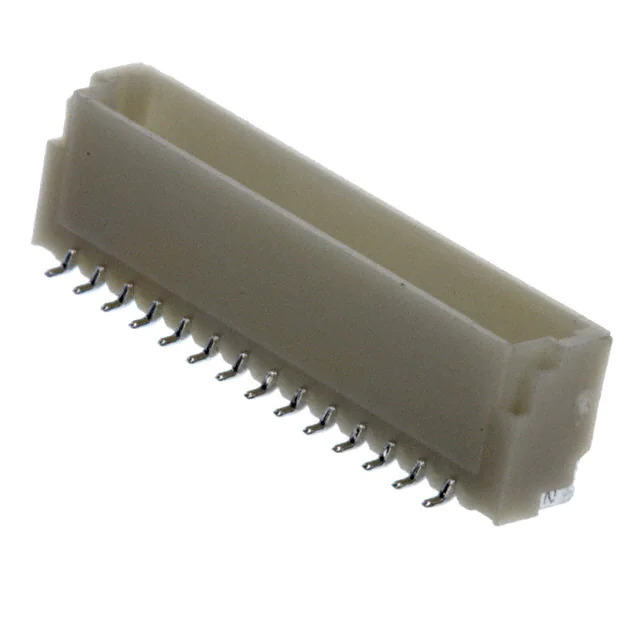

Same model may have multiple batches, images only for reference.

BM14B-SRSS-TB

Name: BM14B-SRSS-TB
Brand: JST Sales America Inc.
SKU: 1372065
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BM14B-SRSS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 14POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	SH/SR
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	14
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.167" (4.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Mated Stacking Heights	4.9mm
Contact Finish Thickness - Post	-
Applications	-
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1372065-BM14B-SRSS-TB
Ultra Librarian 3D Model	Ultra Librarian BM14B-SRSS-TB CAD Model

Alternative Products

Description

The BM14B-SRSS-TB is a male pin header connector manufactured by JST Sales America Inc.

Contact Shape: Square
Number of Contacts: 14
Pitch: 0.039" (1.00mm)
Mounting Type: Surface Mount
Mating Orientation: Board to Cable/Wire
Fastening Type: Push-Pull
Current Rating (Amps): 1A
Color: Natural
Voltage Rating: 50V
Series: SH/SR
Packaging: Tape & Reel (TR)
Application: Computer peripherals, consumer electronics, and telecommunications
