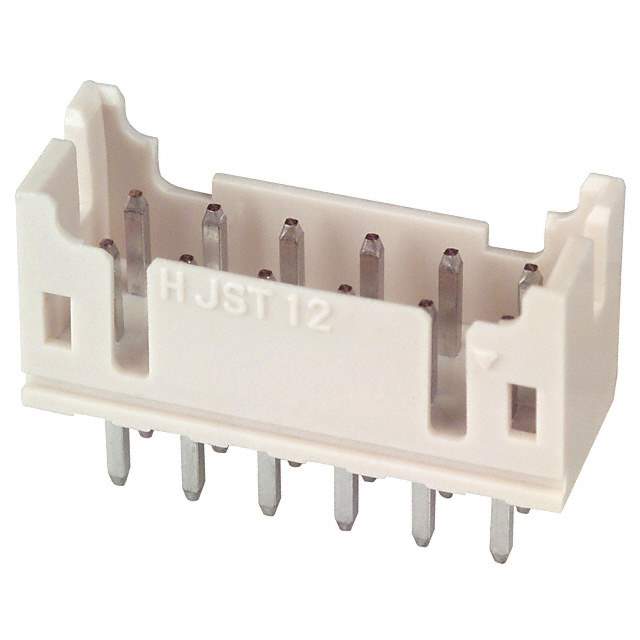

B12B-PHDSS

Name: B12B-PHDSS
Brand: JST Sales America Inc.
SKU: 1293276
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B12B-PHDSS
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PHD
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.291" (7.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.8mm
Other Names	455-1330
Standard Package	500
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293276-B12B-PHDSS
Ultra Librarian 3D Model	Ultra Librarian B12B-PHDSS CAD Model

Alternative Products

Description

The 1293276-B12B-PHDSS is a 12-position 2-row header connector designed for board-to-cable/wire applications.

Positions: 12
Rows: 2
Style: Board-to-Cable/Wire
Fastening Type: Detent Lock
Shrouding: Shrouded 4-Wall
Series: PHD
Contact Shape: Square
Contact Material: Copper Alloy
Voltage Rating: 250V
Current Rating: 3Amps
Flammability Rating: UL94 V-0
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Contact Finish: Tin-Lead
Mounting Type: Through-Hole
Temperature Range: -25°C to 85°C
Overall Contact Length: 0.291 inches (7.40mm)
Package: Bulk
Standard Package: 500 connectors
