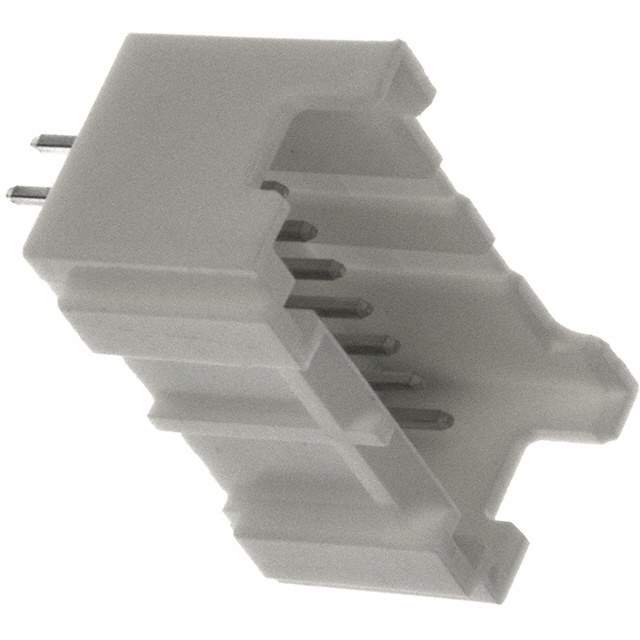

B16B-PADSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B16B-PADSS-1(LF)(SN)

Part No B16B-PADSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2MM / Connector Header Through Hole 16 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PAD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 12.4mm
Base Product Number B16B-PAD
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337732-B16B-PADSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B16B-PADSS-1(LF)(SN) CAD Model

Description

The 1337732-B16B-PADSS-1(LF)(SN) is a male pin header connector from JST Sales America Inc. JST Sales America Inc. is the manufacturer, and 1337732-B16B-PADSS-1(LF)(SN) is the product.

  • Series: PAD
  • Positions: 16
  • Feature: Board Guide
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Shrouded: 4 Walls
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass-filled
  • Connector Style: Board to cable/wire
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Temperature Range: -25°C to 85°C
  • Current Rating: 3A
