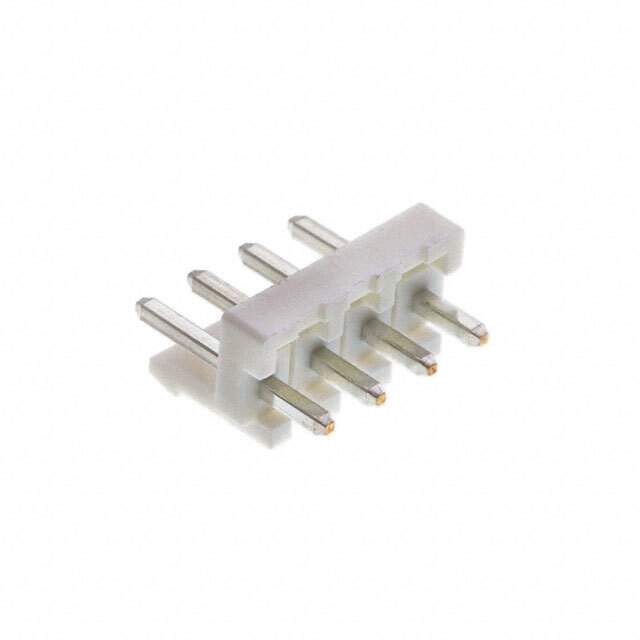

B4P-VH-B(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B4P-VH-B(LF)(SN)

Part No B4P-VH-B(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Base Product Number B4P-VH
Other Names B4PVHBLFSN,B4P-VH-B(LF) (SN),B4P-VH-BLFSN
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293257-B4P-VH-B(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B4P-VH-B(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1293257-B4P-VH-B(LF)(SN) is a 4-position male pin header connector that is perfect for use in electronic devices.

  • Series: VH
  • Number of Positions: 4
  • Connector Type: Male Pin Header
  • Fastening Type: Locking Ramp
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Brass
  • Contact Finish: Tin
  • Contact Shape: Square
  • Style: Board to Cable/Wire
  • Pitch: 0.156" (3.96mm)
  • Package: Bulk
  • Standard Package: 500
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
