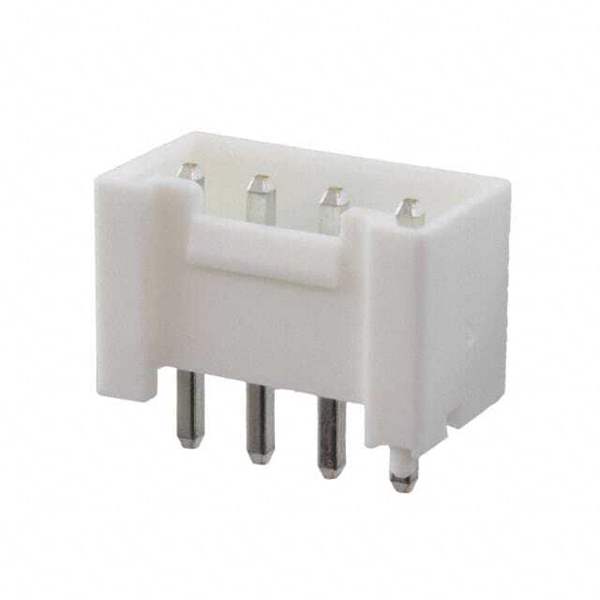

The B4P-VH-FB-B(LF)(SN) is a 4-position, single-row header from the VH series manufactured by JST Sales America Inc. It is a through-hole type connector designed for wire-to-board connections. This connector is commonly used in various electronic devices and equipment to provide a reliable and secure connection between wires and printed circuit boards.

Applications

• Connecting power supplies to PCBs
• Signal connections in control systems
• Interconnecting modules within electronic devices
• Wire-to-board connections in industrial equipment
• General-purpose connections in electronic circuits

Features

• 4 Positions: Accommodates four individual wire connections.
• Single Row: Compact design for efficient PCB layout.
• Through-Hole Mounting: Provides secure and robust PCB attachment.
• VH Series: Part of JST's VH series known for reliability.
• Pitch: Typically 3.96mm pitch between contacts.
• Material: Typically made of high-quality insulating material.
• Contact Material: Tin plated.
• RoHS Compliant (LF): Lead-free construction.

Benefits

• Reliable Connection: Ensures a secure and stable connection between wires and the PCB.
• Easy to Use: Simple insertion and removal of mating connectors.
• Compact Design: Saves space on the PCB.
• Durable Construction: Provides long-lasting performance.
• RoHS Compliance: Meets environmental regulations.

Additional Details

The B4P-VH-FB-B(LF)(SN) header is designed to mate with JST's VH series crimp style housings. The (LF) in the part number indicates that the component is lead-free, complying with RoHS standards. The (SN) likely indicates the plating material, typically tin. This connector is typically used in applications where a secure and reliable wire-to-board connection is required, such as in power supplies, control systems, and various electronic devices. The 3.96mm pitch is a standard spacing for this type of connector. The through-hole mounting style provides a strong mechanical connection to the PCB. When selecting a mating connector housing for the B4P-VH-FB-B(LF)(SN), ensure that the housing is part of the JST VH series and has the appropriate number of positions. Also, be sure to consider the current and voltage requirements of the application when selecting wire and crimp terminals.
