Same model may have multiple batches, images only for reference.

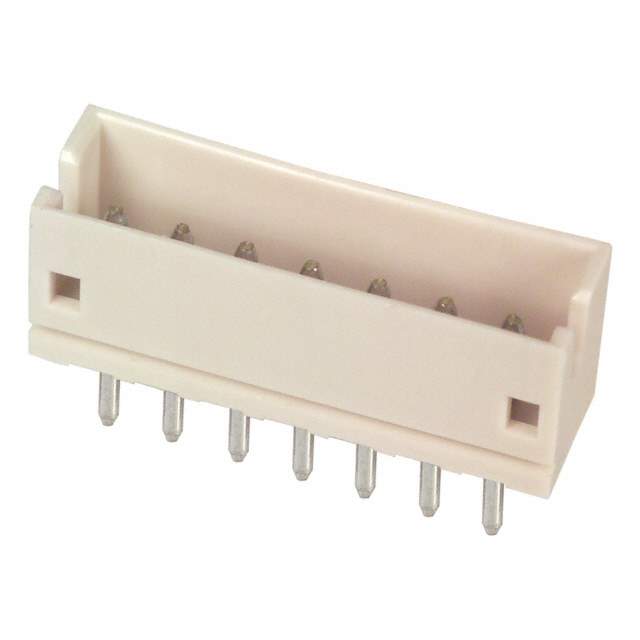

B7B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B7B-ZR(LF)(SN)

Part No B7B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length 0.256" (6.50mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 5.6mm
Base Product Number B7B-ZR
Other Names B7BZRLFSN,455-1662
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293235-B7B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B7B-ZR(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1293235-B7B-ZR(LF)(SN) is a male header connector that is used in various electronic applications.

  • Product Name: 1293235-B7B-ZR(LF)(SN)
  • Series: ZH
  • Positions: Seven
  • Material: High-Quality
  • Voltage Rating: 50V
  • Current Rating: 1A
