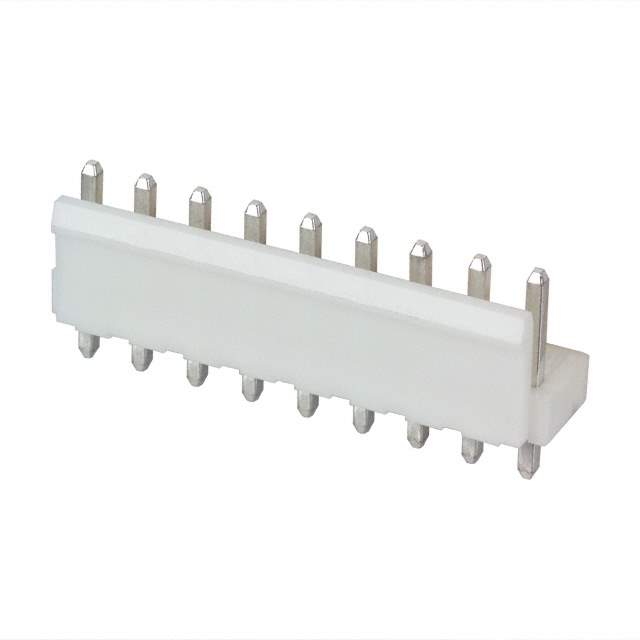

B9P-VH(LF)(SN)

Name: B9P-VH(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1332545
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B9P-VH(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 9POS 3.96MM / Connector Header Through Hole 9 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Mated Stacking Heights	16.5mm
Base Product Number	B9P-VH
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	B9PVHLFSN,B9P-VHLFSN,455-1646
Standard Package	200
Win Source Part Number	1332545-B9P-VH(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B9P-VH(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1332545-B9P-VH(LF)(SN) header is a male pin connector that comes with an array of features.

Configuration: 9-position
Application: Rectangular Connectors
Voltage Rating: 250V
Current Rating: 10A
Insulation Material: Polyamide (PA66), nylon 6/6
Contact Material: Brass
RoHS Compliant: Yes
Material Flammability Rating: UL94 V-0
Mounting: Through Hole
Termination: Soldered
Contact Finish: Tin
Shrouded: 1 Wall
Style: Board-to-cable/wire
Pitch-Mating: 0.156" (3.96mm)
Temperature Range: -25°C ~ 85°C
