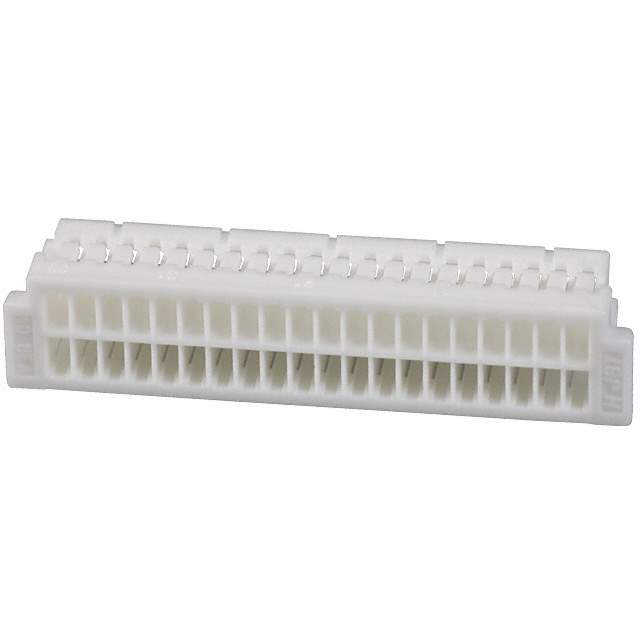

SHDR-40V-S-B Real Image
Same model may have multiple batches, images only for reference.

SHDR-40V-S-B

Part No SHDR-40V-S-B
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 40POS 1.00MM / 40 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 40
Pitch 0.039" (1.00mm)
Number of Rows 2
Row Spacing 0.039" (1.00mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Features Pick and Place
Note Contacts Not Included
Base Product Number SHDR-40V
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number SHDR-40V-S-B(P),455-1438,SHDR40VSBP,(Q)SHDR-40V-S-B(P)
Standard Package 2,000
Win Source Part Number 1332081-SHDR-40V-S-B
Ultra Librarian 3D Model Ultra Librarian SHDR-40V-S-B CAD Model

Description

The JST Sales America Inc. 1332081-SHDR-40V-S-B is a 40-position receptacle connector that is perfect for use in electronic devices.

  • Positions: 40
  • Pitch: 0.039" (1.00mm)
  • Color: Natural
  • Feature: Pick and Place
  • Termination: Crimp
  • Series: SHDR-40V
  • Package: Bulk
