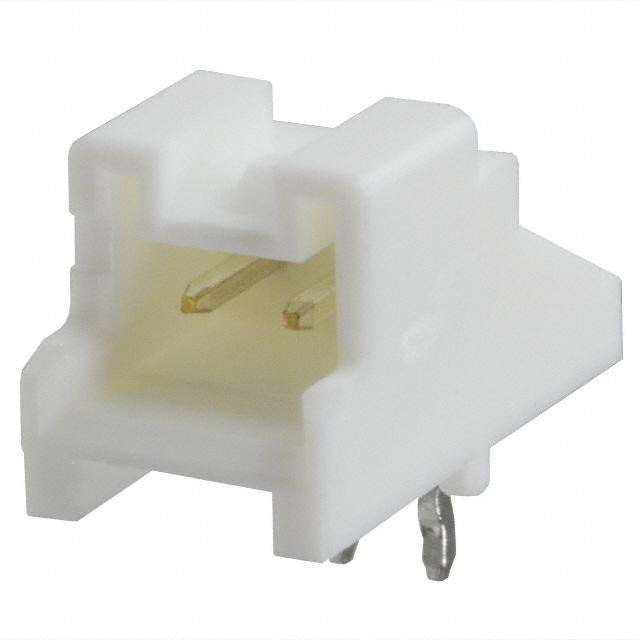

Same model may have multiple batches, images only for reference.

S02B-PASK-2(LF)(SN)

Name: S02B-PASK-2(LF)(SN)
Brand: JST Sales America Inc.
SKU: 303576
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S02B-PASK-2(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER PA 2POS SIDE 2MM TIN
Datasheet	S02B-PASK-2(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	3A
Voltage Rating	250V
Mated Stacking Heights	7mm, 8.4mm
Win Source Part Number	123968-S02B-PASK-2(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian S02B-PASK-2(LF)(SN) CAD Model

Alternative Products

Description

The S02B-PASK-2(LF)(SN) is an active product that is designed for use in board to cable/wire applications, manufactured by JST Sales America Inc.

Connector Type: header
Contact Type: male pin
Application: power control
Supply and Demand: in balance
Packaging: bulk
Shrouded: with 4 walls
Contact Shape: square
