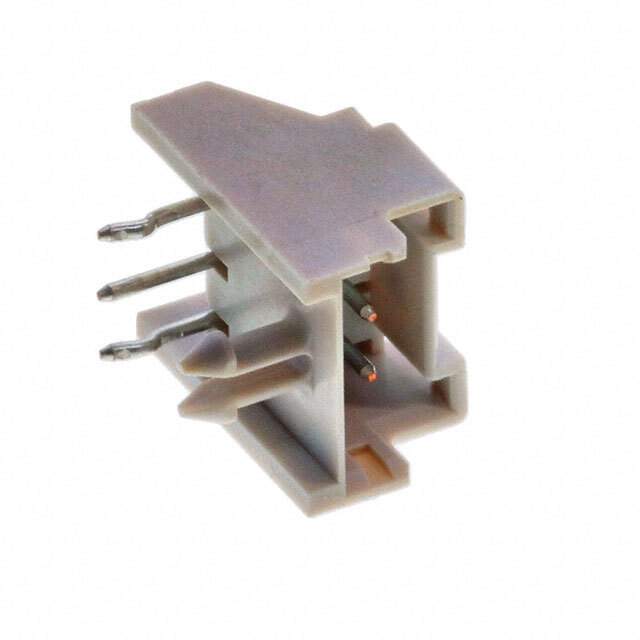

S03B-XASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S03B-XASK-1(LF)(SN)

Part No S03B-XASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2.5MM / Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.299" (7.60mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Lock
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S03B-XAS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Other Names S03B-XASK-1(LF)(SN)-ND,455-4089,S03B-XASK-1LFSN
Standard Package 250
Win Source Part Number 998542-S03B-XASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S03B-XASK-1(LF)(SN) CAD Model

Description

The S03B-XASK-1(LF)(SN) is a rectangular connector that belongs to the Connectors, Interconnects category.

  • Manufacturer: JST Sales America Inc.
  • Board Lock: Yes
  • Mounting Type: Through Hole, Right Angle
  • Number of Positions: 3
  • Pitch - Mating: 0.098” (2.50mm)
  • Contact Finish - Mating: Tin
  • Current Rating: 3A
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Insulation Color: Natural
  • Operating Temperature: -25°C ~ 85°C
