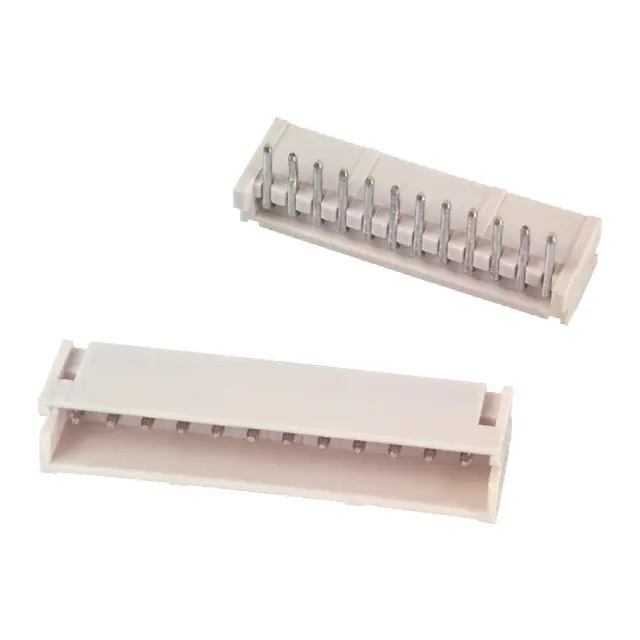

Part No S12B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 1.5MM / Connector Header Through Hole, Right Angle 12 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 12
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length -
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number S12B-ZR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362521-S12B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S12B-ZR(LF)(SN) CAD Model

Description

The S12B-ZR(LF)(SN) is a rectangular connector header with male pins manufactured by JST Sales America Inc.

  • Series: ZH
  • Application: Board to cable/wire
  • Operating Temperature: -25°C to 85°C
  • Connector Type: Header
  • Number of Positions: 12
  • Pitch: 0.059 inches (1.50mm)
  • Current Rating: 1A
  • Style: Shrouded-4 wall
  • Fastening Type: Detent Lock
  • Contact Length (Mating): 0.094 inches (2.40mm)
  • Contact Length (Post): 0.106 inches (2.69mm)
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Voltage Rating: 50V
  • Flammability Rating: UL94 V-0
