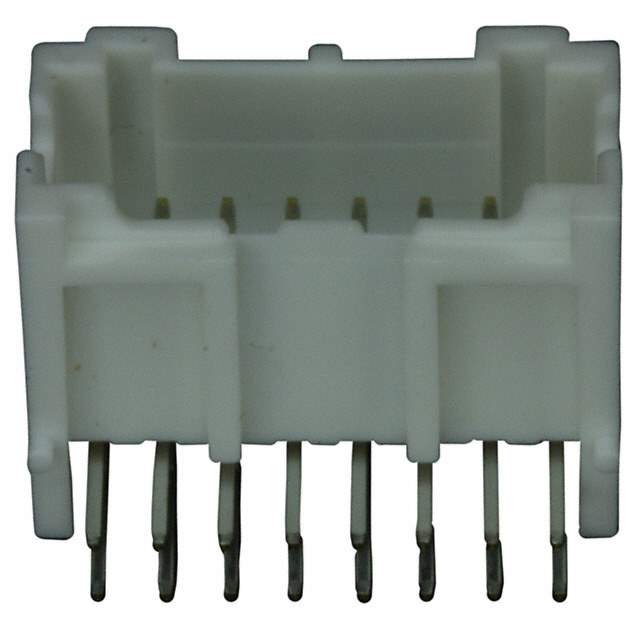

S16B-PADSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S16B-PADSS-1(LF)(SN)

Part No S16B-PADSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2MM / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PAD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.413" (10.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S16B-PAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names S16BPADSS1LFSN,455-2037
Standard Package 336
Win Source Part Number 1089648-S16B-PADSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S16B-PADSS-1(LF)(SN) CAD Model

Description

This PAD series connector is a male pin header with 16 positions, featuring a board guide and a locking ramp for secure fastening.

  • Positions: 16
  • Features: Board Guide, Locking Ramp
  • Material: Copper Alloy
  • Voltage Rating: 250V
  • Mounting: Through Hole, Right Angle
  • Shrouded: 4 Walls
  • Pitch: 0.079 inches
  • Contact Finish: Tin
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Connection Type: Board to Cable/Wire
  • Temperature Range: -25°C to 85°C
  • Packaging: Tray
  • Standard Package: 336
  • Contact Material: Copper Alloy
  • Insulation Height: 0.413 inches
  • Alternatives: 1-1470108-6, 55917-1610, MTMM-106-09-T-D-090, TSW-108-07-T-D, 10-89-7161, and 501645-1620
