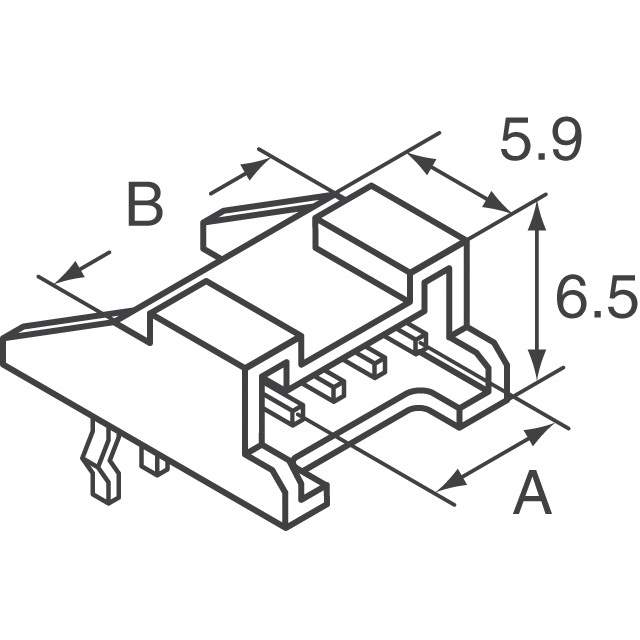

S16B-PASK-2(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S16B-PASK-2(LF)(SN)

Part No S16B-PASK-2(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2MM / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S16B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1861
Standard Package 200
Win Source Part Number 1012028-S16B-PASK-2(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S16B-PASK-2(LF)(SN) CAD Model

Description

The S16B-PASK-2(LF)(SN) is a rectangular connector header manufactured by JST Sales America Inc.

  • Positions: 16
  • Style: board to cable/wire
  • Contact Type: male pin
  • Termination: kinked pin, solder
  • Pitch Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: tin
  • Contact Length - Post: 0.134" (3.40mm)
  • Insulation Height: 0.256" (6.50mm)
  • Current Rating: 3A
  • Packaging: bulk
