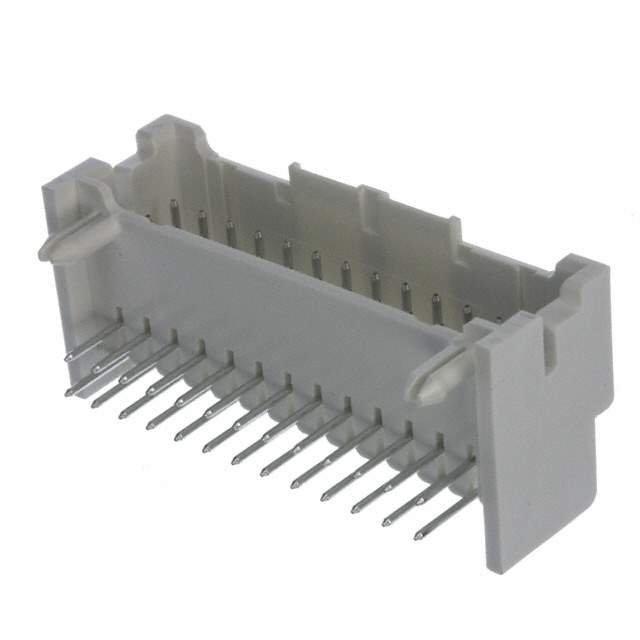

S26B-XADSS-N(LF)(SN)

Name: S26B-XADSS-N(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1201532
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S26B-XADSS-N(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 26POS 2.5MM / Connector Header Through Hole, Right Angle 26 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XAD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.476" (12.10mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S26B-XAD
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-2036
Standard Package	108
Win Source Part Number	1201532-S26B-XADSS-N(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S26B-XADSS-N(LF)(SN) CAD Model

Alternative Products

Description

The XADSS-N(LF)(SN) is a 26 position male pin header connector from JST Sales America Inc.

Pitch-Mating: 0.098" (2.50mm)
Row Spacing - Mating: 0.098" (2.50mm)
Connector Type: Shrouded - 4 Wall
Fastening Type: Locking Ramp
Package: Bulk
Standard Package: 108
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature Range: -25°C ~ 85°C
Voltage Rating: 250V
Current Rating (Amps): 3A
