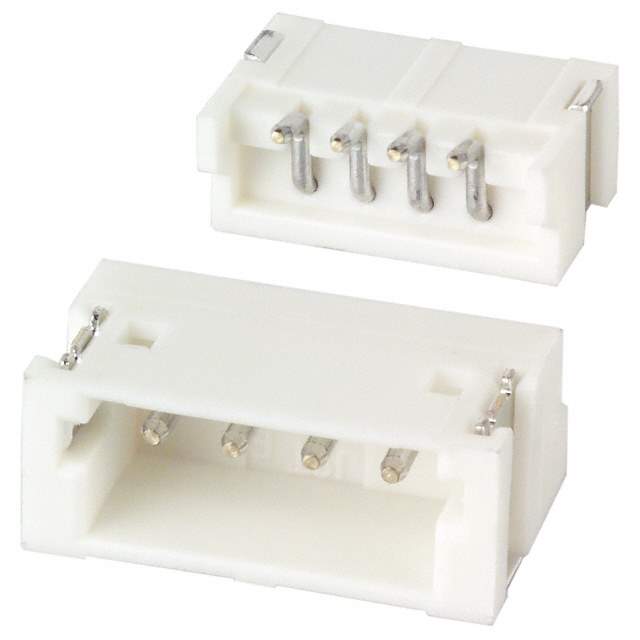

S4B-ZR-SM3A-TF Real Image
Same model may have multiple batches, images only for reference.

S4B-ZR-SM3A-TF

Part No S4B-ZR-SM3A-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 4POS 1.5MM
Datasheet
S4B-ZR-SM3A-TF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Win Source Part Number 124672-S4B-ZR-SM3A-TF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S4B-ZR-SM3A-TF CAD Model

Description

The JST Sales America Inc. 124672-S4B-ZR-SM3A-TF is a surface mount, right angle type connector that is shrouded with 4 walls.

  • Type: header type connector with male pin contact and has 4 positions
  • Pitch: 0.059 inches (1.50mm)
  • Row: 1 row
  • Fastening Type: detent lock
  • Termination: solder
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: made of polyamide (PA46), nylon 4/6, glass filled
  • Material Flammability Rating: UL94 V-0
  • Supply and Demand Status: balanced
  • Status: obsolete (EOL)
