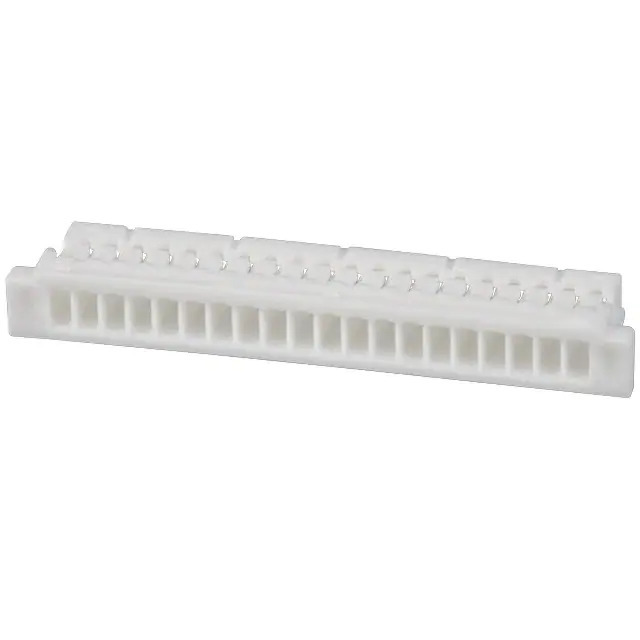

SHR-20V-S-B JST Sales America Inc.
Same model may have multiple batches, images only for reference.

SHR-20V-S-B

Part No SHR-20V-S-B
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 1.00MM / 20 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series SH
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.039" (1.00mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Natural
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number SHR-20V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365377-SHR-20V-S-B
Ultra Librarian 3D Model Ultra Librarian SHR-20V-S-B CAD Model

Description

The 1365377-SHR-20V-S-B is a rectangular connector housing from JST Sales America Inc.

  • Series: SH
  • Mounting Type: Free-Hanging (In-Line)
  • Termination: Crimp
  • Temperature Range: -25°C to 85°C
  • Package: Bulk
  • Status: Active
  • HTSUS Code: 8538.90.6000
