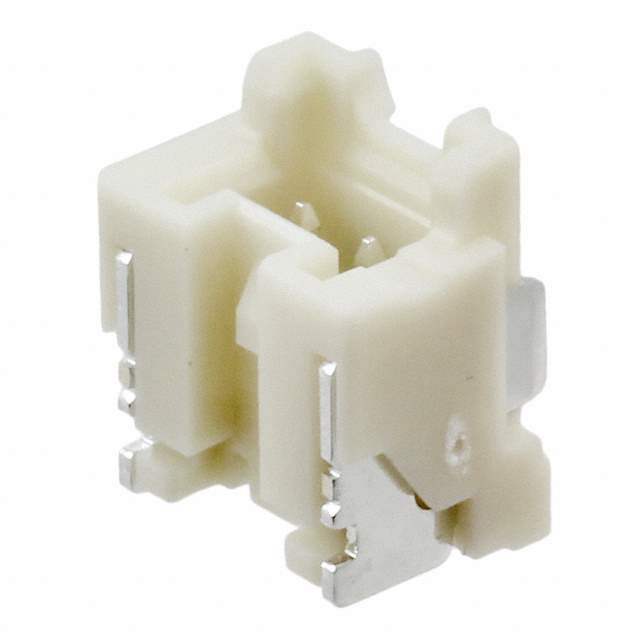

SM02B-PASS-TBT(LF)(SN) Real Image1 SM02B-PASS-TBT(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
SM02B-PASS-TBT(LF)(SN) Real Image1 SM02B-PASS-TBT(LF)(SN) Real Image2
SM02B-PASS-TBT(LF)(SN) Real Image1 SM02B-PASS-TBT(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM02B-PASS-TBT(LF)(SN)

Part No SM02B-PASS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224" (5.69mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 756656-SM02B-PASS-TBT(LF)(SN)
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SM02B-PASS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. SM02B-PASS-TBT(LF)(SN) is a header connector that is designed for board to cable/wire applications.

  • Packaging: Reel
  • Features: Pick and place, solder retention
  • Contact Type: Male pin
  • Fastening Type: Locking ramp
  • Voltage Rating: 250V
  • Contact Material: Copper alloy
  • Popularity: Low
  • Supply and Demand Status: Limited
