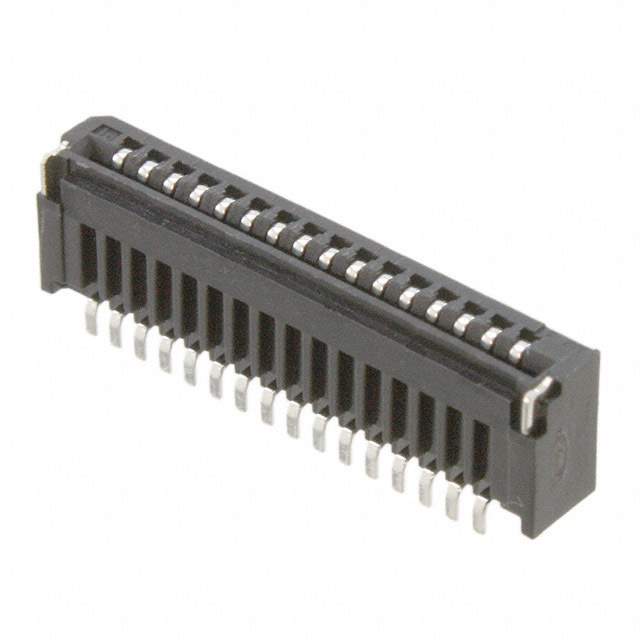

16FMN-SMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

16FMN-SMT-A-TF(LF)(SN)

Part No 16FMN-SMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 16POS 1.00MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Flat Flex Type FFC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 16
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806607-16FMN-SMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 16FMN-SMT-A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 806607-16FMN-SMT-A-TF(LF)(SN) is a 16-position FFC connector from.

  • Positions: 16
  • Mounting Type: Surface Mount Right Angle
  • Insertion Force: Low Insertion Force (LIF)
  • Pitch: 0.039 inches (1.00mm)
  • Height Above Board: 0.118 inches (3.00mm)
  • Termination: Solder
  • Contact Finish: Tin
  • Material: Polyamide (PA6T) and Nylon 6T
  • Flammability Rating: UL94 V-0
  • Current Rating: 0.5A
  • Voltage Rating: 50V
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
