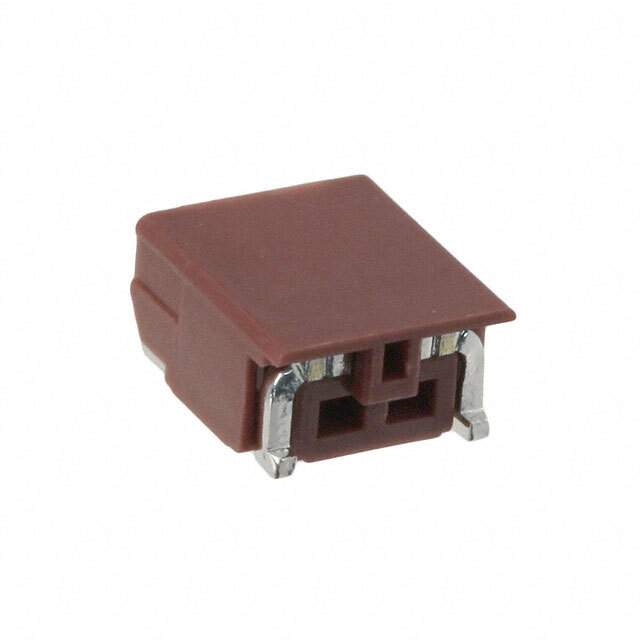

SM02B-SFHRS-TF(LF)(SN) Real Image1 SM02B-SFHRS-TF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
SM02B-SFHRS-TF(LF)(SN) Real Image1 SM02B-SFHRS-TF(LF)(SN) Real Image2
SM02B-SFHRS-TF(LF)(SN) Real Image1 SM02B-SFHRS-TF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM02B-SFHRS-TF(LF)(SN)

Part No SM02B-SFHRS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1.8MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 2 position 0.071" (1.80mm)
Manufacturer JST Sales America Inc.
Series SFH
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name SM02B-SF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2524-2, 455-2524-1, 455-2524-6, SM02B-SFHRS-TFLFSN, SM02B-SFHRS-TF (LF)(SN), SM02BSFHRSTFLFSN
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934037-SM02B-SFHRS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM02B-SFHRS-TF(LF)(SN) CAD Model

Description

The SFH series connector header is a surface mount, right angle 2 position 0.071" (1.80mm) connector, manufactured by JST Sales America Inc.

  • Operating Temperature Range: -25°C ~ 85°C
  • Quantity per Package: 2000
  • Package: Reel - TR
  • Family Name: SM02B-SF
  • ECCN: EAR99
  • Popularity: High
  • Estimated Production Lead Time: 33 weeks
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other part numbers: 455-2524-2, 455-2524-1, 455-2524-6, SM02B-SFHRS-TFLFSN, SM02B-SFHRS-TF (LF)(SN), SM02BSFHRSTFLFSN
