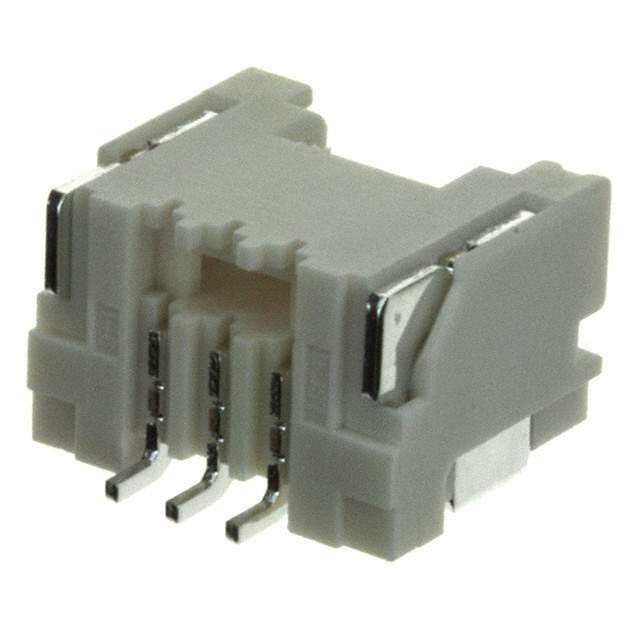

SM03B-ZESS-TB(LF)(SN) Real Image1 SM03B-ZESS-TB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
SM03B-ZESS-TB(LF)(SN) Real Image1 SM03B-ZESS-TB(LF)(SN) Real Image2
SM03B-ZESS-TB(LF)(SN) Real Image1 SM03B-ZESS-TB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM03B-ZESS-TB(LF)(SN)

Part No SM03B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 3POS 1.5MM / Connector Header Surface Mount, Right Angle 3 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.228" (5.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number SM03B-ZE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2396-1,455-2396-2,SM03B-ZESS-TB (LF)(SN),SM03BZESSTBLFSN,455-2396-6,SM03B-ZESS-TB(LF)(SN)-
Standard Package 1,000
Win Source Part Number 968995-SM03B-ZESS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM03B-ZESS-TB(LF)(SN) CAD Model

Description

The 968995-SM03B-ZESS-TB(LF)(SN) is a rectangular connector header male pin manufactured by JST Sales America Inc.

  • Series: ZE
  • Mounting Type: Surface Mount Right Angle
  • Number of Positions: 3
  • Feature: Solder Retention
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • RoHS: Yes
  • ECCN: EAR99
