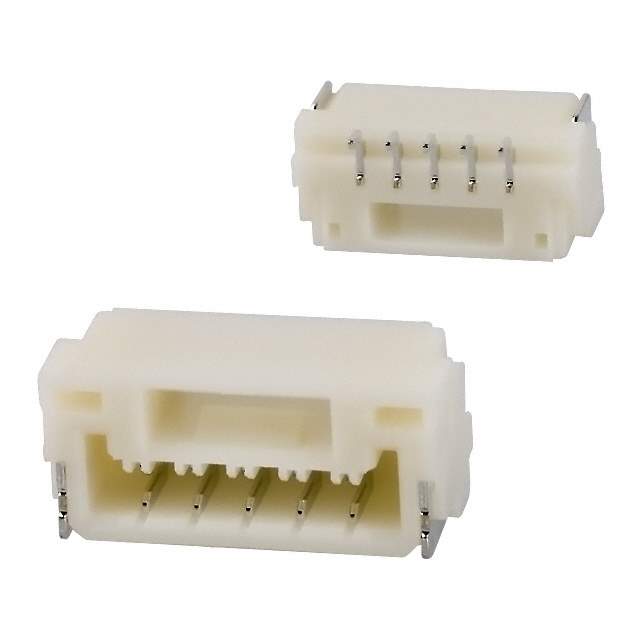

SM05B-GHS-TB(LF)(SN)

Name: SM05B-GHS-TB(LF)(SN)
Brand: JST Sales America Inc.
SKU: 806465
Availability: InStock
Rating: 4.91 (200 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM05B-GHS-TB(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 5POS 1.25MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JST Sales America Inc.
Packaging	Reel
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.049"
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.167"
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA9T), Nylon 9T
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Manufacturer Pack Quantity	2,500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806465-SM05B-GHS-TB(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian SM05B-GHS-TB(LF)(SN) CAD Model

Alternative Products

Description

JST Sales America Inc. has manufactured the 806465-SM05B-GHS-TB(LF)(SN) electronic component.

Component Type: Header Connector
Contact Type: Outer Shroud
Positions: 5
Mounting: Surface Mount, Right-Angle
Packaging: Reel
Supply and Demand Status: Balance
Manufacturer Pack Quantity: 2,500
