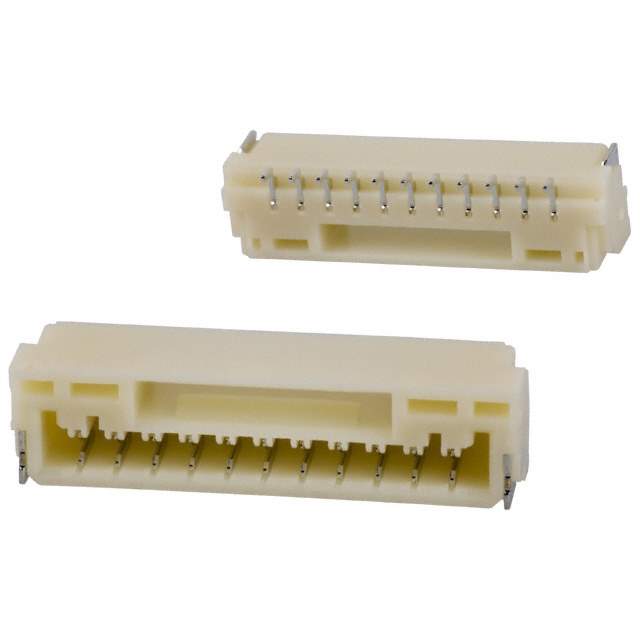

SM11B-GHS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM11B-GHS-TB(LF)(SN)

Part No SM11B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 11POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049"
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167"
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806377-SM11B-GHS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM11B-GHS-TB(LF)(SN) CAD Model

Description

The 806377-SM11B-GHS-TB(LF)(SN) is a surface mount, right angle header connector from JST Sales America Inc. with 11 positions.

  • Features: Solder retention, locking ramp, outer shroud contact
  • Positions Loaded: All
  • Rows: Single
  • Pitch: 0.049 inches
  • Contact Material: Phosphor bronze
  • Voltage Rating: 50V
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA9T), nylon 9T
  • Shrouded: 4 walls
  • Insulation Height: 0.167 inches
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 1A
  • Packaging: Reel
  • Manufacturer Pack Quantity: 2,500
  • Popularity: Medium
  • Supply and Demand Status: Balanced
