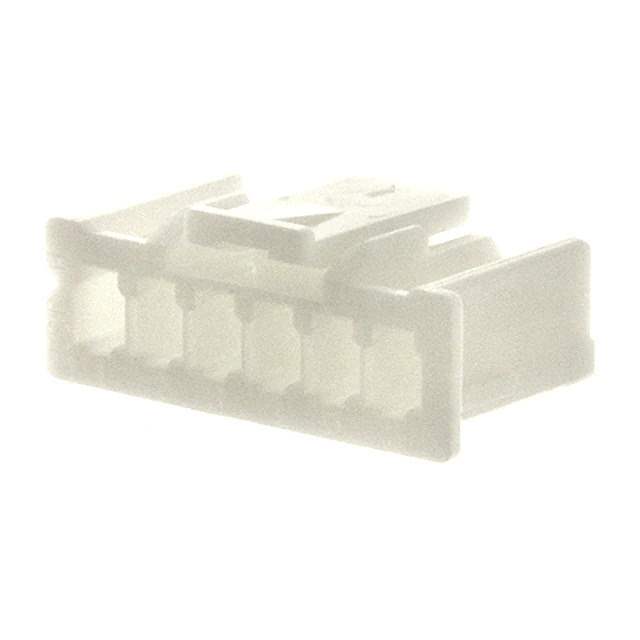

Same model may have multiple batches, images only for reference.

XAP-06V-1

Name: XAP-06V-1
Brand: JST Sales America Inc.
SKU: 850753
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XAP-06V-1
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 6POS 2.50MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	XAP
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	850753-XAP-06V-1
Ultra Librarian 3D Model	Ultra Librarian XAP-06V-1 CAD Model

Alternative Products

Description

The 850753-XAP-06V-1 is a rectangular connector housing from the XA series by JST Sales America Inc.

Connector Type: Receptacle
Number of Positions: 6
Number of Rows: 1
Fastening Type: Latch Lock
Mounting Type: Free Hanging (In-Line)
Termination: Crimp
Contacts: Not Included
Package: Bulk
Standard Quantity: 1,000 pcs
Pitch: 0.098" (2.50mm)
Color: Natural
Operating Temperature Range: -25°C to 85°C
