Same model may have multiple batches, images only for reference.

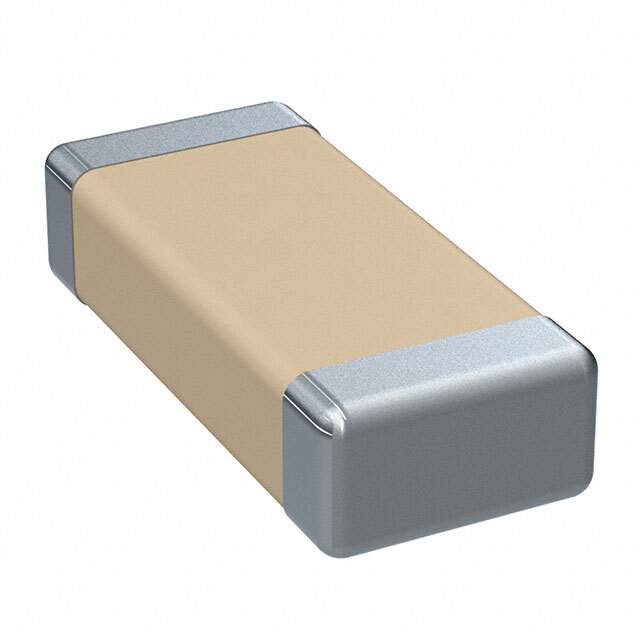

C1206C180J5GACTU Real Image
Same model may have multiple batches, images only for reference.

C1206C180J5GACTU

Part No C1206C180J5GACTU
Manufacturer Kemet
Catalog Ceramic Capacitors
Description 1206 C 18pF Ceramic Multilayer Capacitor; 50 VDC; +125degC; C0G Dielec; +/-5%
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 18 pF
Case / Package 1206
Case Code (Imperial) 1206
Case Code (Metric) 3216
Contact Material Tin
Depth 1.6 mm
Dielectric C0G
Dielectric Material Ceramic
Dissipation Factor 0.1 %
Height 780 µm
Lead Free Lead Free
Length 3.2 mm
Material Ceramic
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8532240020, 8532240020
Temperature Coefficient 30 ppm/°C
Termination SMD/SMT
Thickness 889 µm
Tolerance 5 %
Voltage 50 V
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Width 1.6002 mm
Win Source Part Number 1199143-C1206C180J5GACTU
Categories Ceramic Capacitors
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C1206C180J5GACTU CAD Model

Description

The Kemet C1206C180J5GACTU is a ceramic capacitor with a capacitance of 18 pF and a voltage rating of 50V.

  • Capacitance: 18 pF
  • Voltage Rating: 50V
  • Tolerance: 5%
  • Temperature Coefficient: 30 ppm/°C
  • Termination: SMD/SMT
  • Package: 1206
  • Package Size: 1.6002 mm x 3.2 mm
  • Standard Package: Cut Tape
  • Height: 780 µm
  • Thickness: 889 µm
  • Pins: Two
  • Material: Ceramic
  • ROHS Compliant: Yes
  • Lead-Free: Yes
