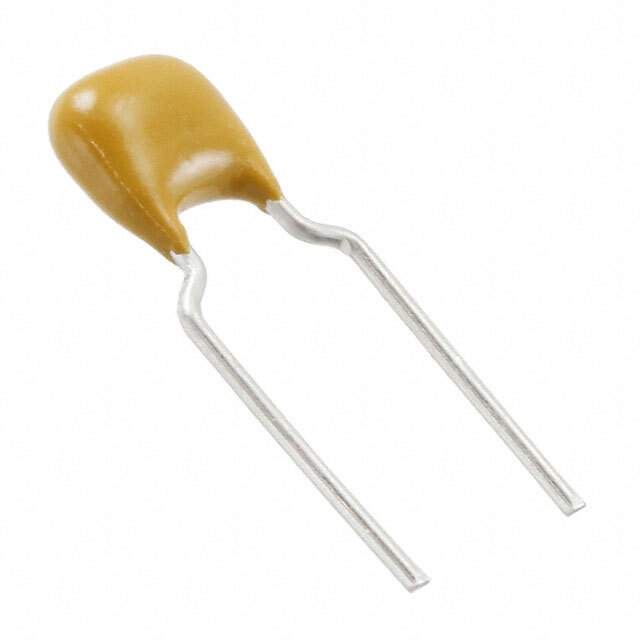

The C322C473M5U5TA is a ceramic capacitor manufactured by Kemet. This capacitor is part of Kemet’s C322 series, known for their reliability and performance in various electronic circuits. It's designed for general-purpose applications requiring a stable capacitance value within a specific voltage and temperature range.

Applications

• General electronic circuits
• Bypass and decoupling applications
• Filtering circuits
• Timing circuits
• Consumer electronics
• Industrial electronic equipment

Features

• Ceramic capacitor
• SMD (Surface Mount Device) package
• Capacitance value of 47nF (47 x 10^-9 Farads)
• Voltage rating of 25V
• X5R dielectric
• Operating temperature range of -55°C to +85°C

Benefits

• Stable capacitance over temperature variations due to X5R dielectric
• Reliable performance in general-purpose applications
• Compact size for high-density circuit designs
• Easy to integrate into automated assembly processes
• Long lifespan and high reliability

Additional Details

The X5R dielectric indicates that the capacitor maintains its capacitance relatively well over a temperature range of -55°C to +85°C, with a maximum capacitance change of ±15%. The SMD package allows for efficient pick-and-place assembly on printed circuit boards. The 25V voltage rating specifies the maximum DC voltage that can be safely applied to the capacitor. The capacitance value of 47nF is suitable for a wide range of applications where moderate capacitance is required. Ceramic capacitors are known for their low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance), making them suitable for high-frequency applications. Kemet is a reputable manufacturer known for producing high-quality passive components.
