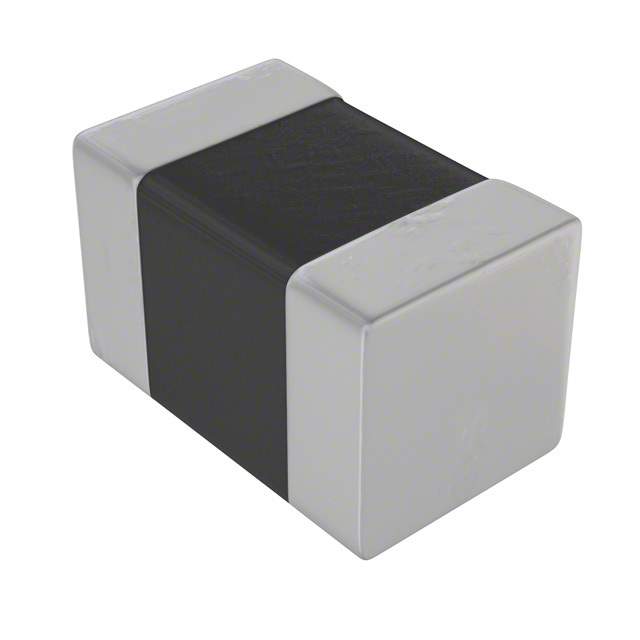

Same model may have multiple batches, images only for reference.

L0805C1R0MDWIT

Name: L0805C1R0MDWIT
Brand: Kemet
SKU: 965278
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	L0805C1R0MDWIT
Manufacturer	Kemet
Catalog	Fixed Inductors
Description	FIXED IND 1UH 700MA 190 MOHM SMD / 1 µH Unshielded Drum Core, Wirewound Inductor 700 mA 190mOhm 0805 (2012 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	L-DWI
Package	Tape & Reel
Product Status	Last Time Buy
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	190mOhm
Frequency - Self Resonant	100MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	7.96 MHz
Mounting	SMD (SMT)
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Dimension	0.083" L x 0.059" W (2.11mm x 1.50mm)
Height - Seated (Max)	0.041" (1.04mm)
Base Product Number	L0805C
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	399-9584-1,399-9584-2,399-9584-6
Standard Package	3,000
Win Source Part Number	965278-L0805C1R0MDWIT
Ultra Librarian 3D Model	Ultra Librarian L0805C1R0MDWIT CAD Model

Alternative Products

Description

The L0805C1R0MDWIT from KEMET is a fixed inductor that is used for a wide range of electronic components.

Series: L-DWI
Type: Drum core, wirewound
Package: Tape & Reel
Shielded: Unshielded
Inductance: 1 µH
Height - Seated (Max): 0.041" (1.04mm)
Standard Package: 3,000
Mounting Type: Surface Mount
Tolerance: ±20%
Core Material: Ferrite
DC Resistance (DCR): 190mOhm
Voltage Rating: -
Temperature Range: -40°C ~ 105°C
Dimension: 0.083" L x 0.059" W (2.11mm x 1.50mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
Current Rating (Amps): 700 mA
Inductance Frequency - Test: 7.96 MHz
REACH: Unaffected
HTSUS Code: 8504.50.4000
