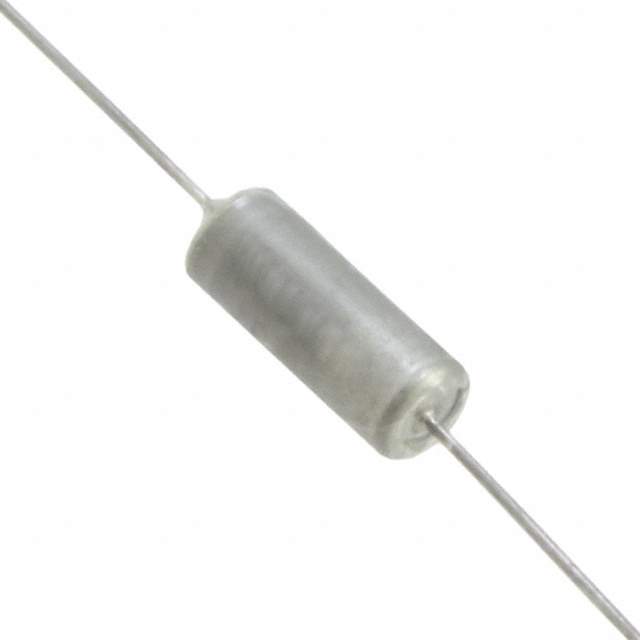

M39003/01-6053 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-6053

Part No M39003/01-6053
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 15V AXIAL / 22 µF Hermetically Sealed Tantalum Capacitors 15 V Axial 2Ohm
Datasheet
M39003/01-6053 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Kemet
Series Military, MIL-PRF-39003/1, CSR13
Package Bulk
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 15 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 2Ohm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
Height - Seated (Max) -
Lead Spacing -
Manufacturer Size Code B
Features High Reliability
Failure Rate B (0.1%)
Base Product Number M39003/01
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
California Prop 65 Warning Information
Standard Package 75 pcs
Win Source Part Number 1383573-M39003/01-6053
Ultra Librarian 3D Model Ultra Librarian M39003/01-6053 CAD Model

Description

The 1383573-M39003/01-6053 is a tantalum capacitor with a capacitance of 22 μF and a voltage rating of 15V.

  • Series: MIL-PRF-39003/1 and CSR13, designed for high reliability applications
  • Seal: Hermetically sealed
  • Capacitance: 22 μF
  • Voltage Rating: 15V
  • Size: 0.185" diameter x 0.610" length
  • Package: Bulk package with 75 pcs in a standard package
  • Manufacturer: Kemet
  • Tolerance: ±10%
  • Equivalent Series Resistance (ESR): 2 Ohm
  • Operating Temperature: -55°C to 125°C
