Same model may have multiple batches, images only for reference.

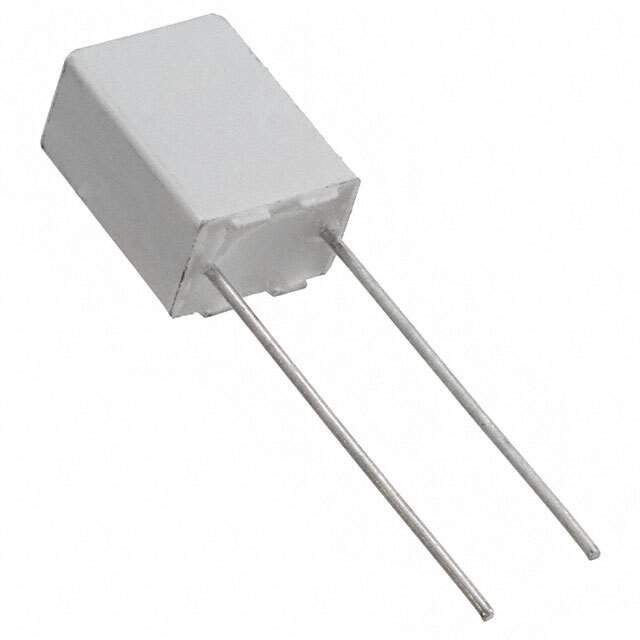

MMK5682K63J01L16.5TR18 Real Image
Same model may have multiple batches, images only for reference.

MMK5682K63J01L16.5TR18

Part No MMK5682K63J01L16.5TR18
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 6800PF 10% 63VDC RADIAL / 6800 pF Film Capacitor 40V 63V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series MMK
Package Tape & Reel (TR)
Capacitance 6800 pF
Tolerance ±10%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications General Purpose
Base Product Number MMK5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-MMK5682K63J01L16.5TR18TR,F601JF682K063L
Standard Package 2,500
Win Source Part Number 1205541-MMK5682K63J01L16.5TR18
Ultra Librarian 3D Model Ultra Librarian MMK5682K63J01L16.5TR18 CAD Model

Description

The MMK5682K63J01L16.5TR18 is a radial through-hole capacitor from KEMET.

  • Capacitance: 6800 pF
  • Voltage Rating (DC): 63V
  • Voltage Rating (AC): 40V
  • Tolerance: ±10%
  • Lead Spacing: 0.197" (5.00mm)
  • Dielectric Material: Polyester and Metallized
  • Series: MMK
  • Temperature Range: -55°C to 100°C
  • Package: Tape and Reel
  • Standard Package: 2,500 pieces
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
