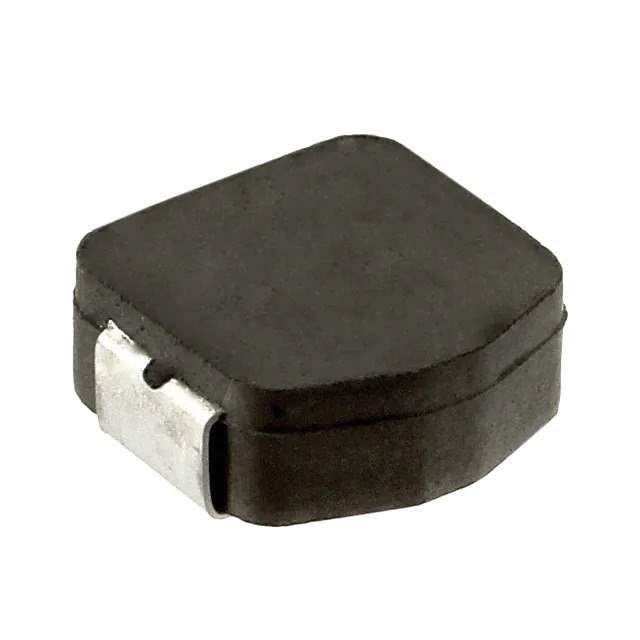

Same model may have multiple batches, images only for reference.

MPLCG0630L1R0

Name: MPLCG0630L1R0
Brand: Kemet
SKU: 643844
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MPLCG0630L1R0
Manufacturer	Kemet
Catalog	Fixed Inductors
Description	FIXED IND 1UH 11.9A 9 MOHM SMD
Datasheet	MPLCG0630L1R0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	KEMET
Series	MPLCG
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Metal Composite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	11.9 A
Current - Saturation (Isat)	11.3A
Shielding	Shielded
DC Resistance (DCR)	9mOhm Max
Temperature Range - Operating	-20°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.295" L x 0.264" W (7.50mm x 6.70mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	MPLCG0630
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	643844-MPLCG0630L1R0
Ultra Librarian 3D Model	Ultra Librarian MPLCG0630L1R0 CAD Model

Alternative Products

Description

The MPLCG0630L1R0 is a fixed inductor from KEMET's MPLCG series. It is a drum core, wirewound inductor with a inductance of 1 µH.

Inductance: 1 µH
Size: 0.295" L x 0.264" W (7.50mm x 6.70mm)
Height: 0.118" (3.00mm)
Shielded: For improved performance
Package: Tape & reel
Temperature Range: -20°C to 120°C
Current Rating: 11.9 A
Features: Low DC resistance and high-quality core material
Performance: Excellent performance
Suitable For: A wide range of applications
