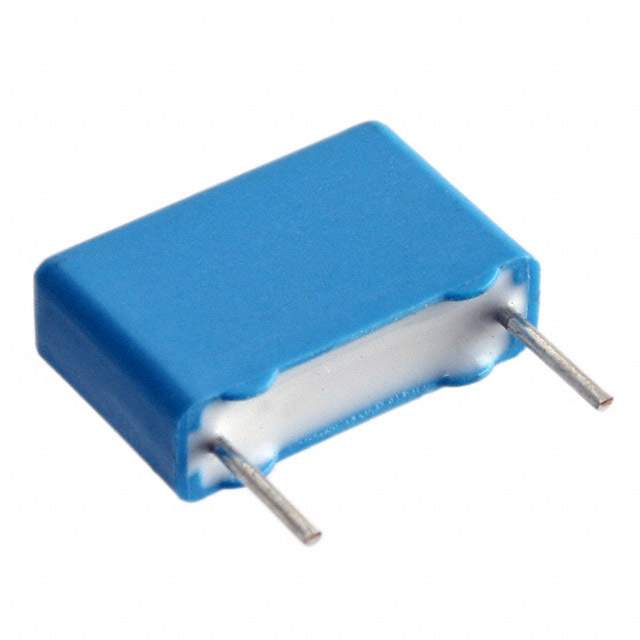

PHE450MA5100JR05 Real Image
Same model may have multiple batches, images only for reference.

PHE450MA5100JR05

Part No PHE450MA5100JR05
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 630VDC RAD
Datasheet
PHE450MA5100JR05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 10000pF
Tolerance ±5%
Voltage Rating - AC 300V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications General Purpose
Win Source Part Number 1065565-PHE450MA5100JR05
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE450MA5100JR05 CAD Model

Description

The PHE450MA5100JR05 is a general-purpose capacitor manufactured by KEMET that has a capacitance of 10000pF and a tolerance of ±5%.

  • Capacitance: 10000pF
  • Tolerance: ±5%
  • Maximum Voltage Rating: 300V AC and 630V DC
  • Mounting: through-hole mounted with PC pins
  • Height: 0.354 inches (9.00mm)
  • Dielectric Material: polypropylene (PP), metallized
  • Operating Temperature Range: -55°C to 105°C
