Same model may have multiple batches, images only for reference.

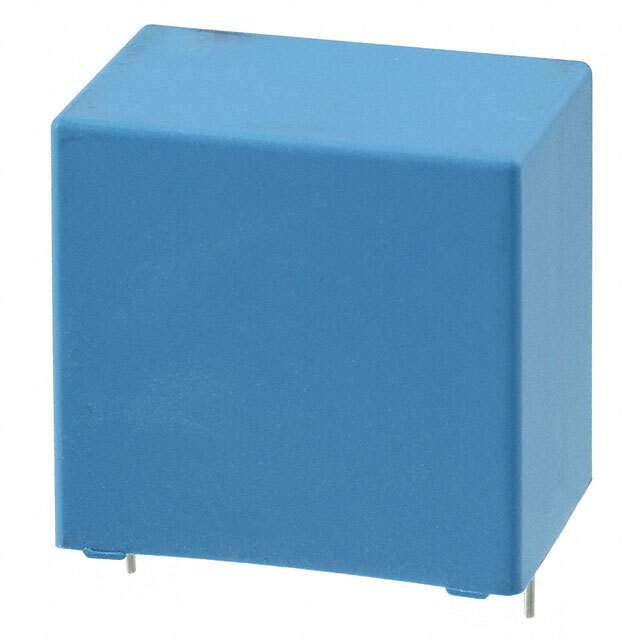

PHE844RF7100MR06 Real Image
Same model may have multiple batches, images only for reference.

PHE844RF7100MR06

Part No PHE844RF7100MR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 1KVDC RADIAL
Datasheet
PHE844RF7100MR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating - AC 440V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.827" W (31.50mm x 21.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Features X1 Safety Rated
Win Source Part Number 209925-PHE844RF7100MR06
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE844RF7100MR06 CAD Model

Description

The Kemet PHE844RF7100MR06 capacitor is a high-performance film capacitor that is designed to provide reliable and safe operation in a wide range of electronic applications.

  • Voltage Rating (AC): 440V AC
  • Voltage Rating (DC): 1000V DC
  • Temperature Range: -40°C to 105°C
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Safety Rating: X1
  • Mounting: Through-hole
