Same model may have multiple batches, images only for reference.

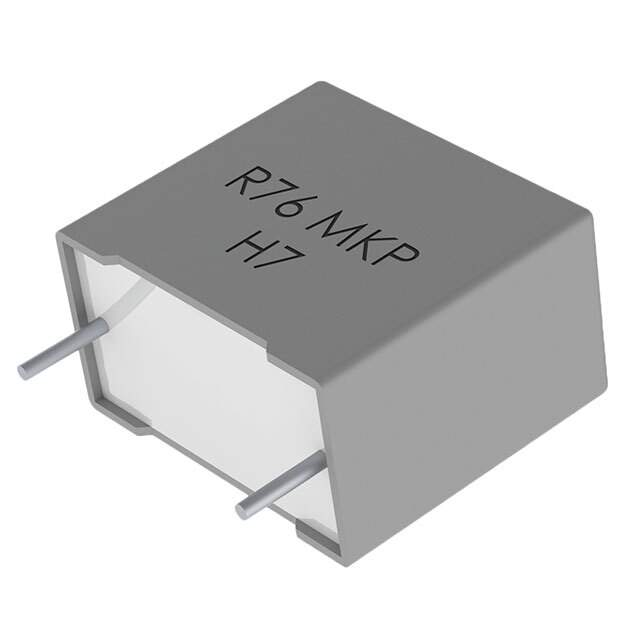

R76TR34704030J Real Image
Same model may have multiple batches, images only for reference.

R76TR34704030J

Part No R76TR34704030J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.47UF 5% 1.6KVDC RAD  /  0.47 µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R76
Package Tray
Capacitance 0.47 µF
Tolerance ±5%
Voltage Rating - AC 650V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.260" L x 0.866" W (32.00mm x 22.00mm)
Height - Seated (Max) 1.461" (37.10mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Base Product Number R76TR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Other Names 399-12850,76TR34704030J
Standard Package 112
Win Source Part Number 1119096-R76TR34704030J
Ultra Librarian 3D Model Ultra Librarian R76TR34704030J CAD Model

Description

The KEMET R76 series film capacitor is designed for use in high frequency, switching and high pulse, DV/DT applications. With a capacitance of 0.47 µF and a tolerance of ±5%, the R76 capacitor has a voltage rating - AC of 650V and voltage rating - DC of 1600V (1.6kV).

  • Capacitance: 0.47 µF
  • Tolerance: ±5%
  • Voltage Rating - AC: 650V
  • Voltage Rating - DC: 1600V (1.6kV)
  • Package Dimensions: 1.260" L x 0.866" W (32.00mm x 22.00mm)
  • Height: 1.461" (37.10mm)
  • Mounting Type: through-hole
  • Lead Spacing: 1.083" (27.50mm)
  • Packaging: tray
