Same model may have multiple batches, images only for reference.

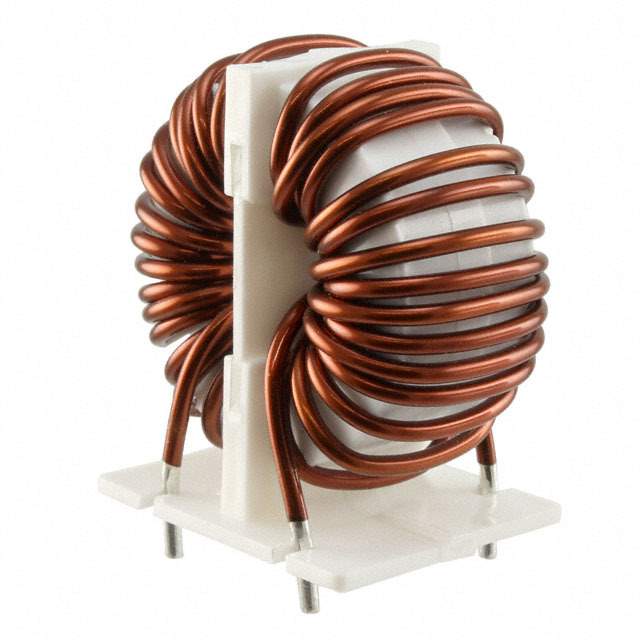

SC-15-10J Real Image
Same model may have multiple batches, images only for reference.

SC-15-10J

Part No SC-15-10J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 12mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-15
Other Names UALSC1510J0000,399-10659
Standard Package 160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277094-SC-15-10J
Ultra Librarian 3D Model Ultra Librarian SC-15-10J CAD Model

Description

The SC series common mode choke is an ideal filter for power line applications.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 15A (max)
  • Filter Type: Power Line
  • Height: 1.732 inches (44.00mm)
  • Lines: Two
  • Inductance: 1 mH @ 100 kHz
  • DC Resistance (DCR): 12mOhm (max)
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Dimension: 1.732 inches L x 1.181 inches W (44.00mm x 30.00mm)
  • Manufacturer: KEMET
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8504.31.4065
