Same model may have multiple batches, images only for reference.

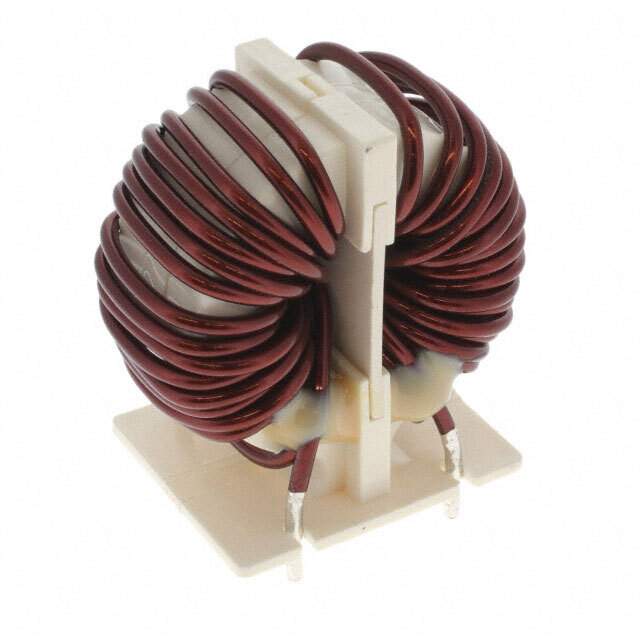

SC-18-E12J Real Image
Same model may have multiple batches, images only for reference.

SC-18-E12J

Part No SC-18-E12J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2 mH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 9mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.969" L x 1.220" W (50.00mm x 31.00mm)
Height (Max) 1.969" (50.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names 399-SC-18-E12J,UALSC18E12J000
Standard Package 45
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277015-SC-18-E12J
Ultra Librarian 3D Model Ultra Librarian SC-18-E12J CAD Model

Description

The Kemet SC-18-E12J is a common mode choke designed for use in power line filtering applications.

  • Maximum DC Resistance: 9mOhm
  • Rated Current: 18A
  • Inductance: 1.2mH @ 10kHz
  • Operating Temperature Range: 25°C to 120°C
