Same model may have multiple batches, images only for reference.

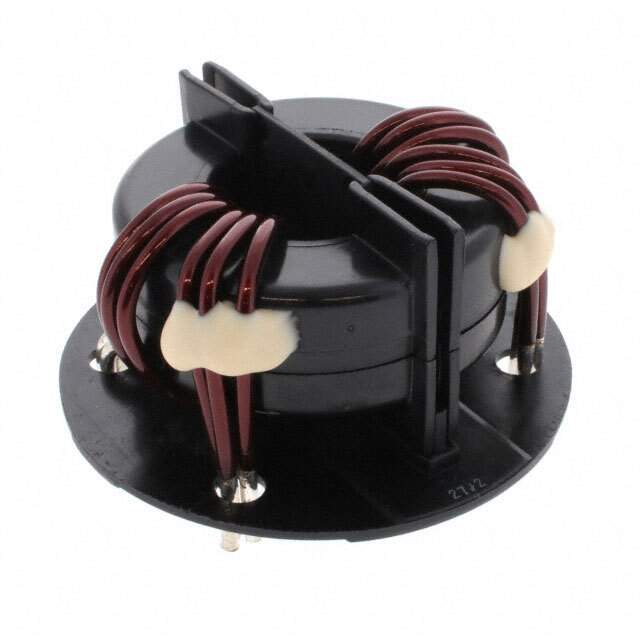

SCF47B-600-2R2C0005JH Real Image
Same model may have multiple batches, images only for reference.

SCF47B-600-2R2C0005JH

Part No SCF47B-600-2R2C0005JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 50 µH @ 100 kHz
Current Rating (Max) 60A
DC Resistance (DCR) (Max) 0.31mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.480" Dia (63.00mm)
Height (Max) 2.402" (61.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCF47B
Other Names UALF47B0005JH0,399-SCF47B-600-2R2C0005JH
Standard Package 36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276916-SCF47B-600-2R2C0005JH
Ultra Librarian 3D Model Ultra Librarian SCF47B-600-2R2C0005JH CAD Model

Description

The KEMET SCF47B-600-2R2C0005JH common mode choke is a power line filter with a voltage rating of 250V (AC/DC).

  • Current Rating: 60A
  • Inductance: 50 µH @ 100 kHz
  • DC Resistance (DCR): 0.31mOhm
  • Height: 2.402" (61.00mm)
  • Mounting Type: Through-hole
  • Package/Case: Horizontal, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
  • Dimension: 2.480" Dia (63.00mm)
  • Packaging: Tray
