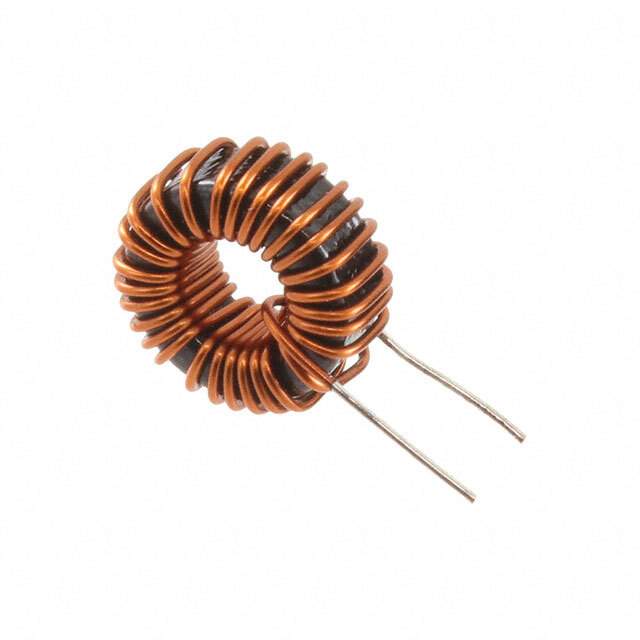

Same model may have multiple batches, images only for reference.

SHBC12-1R0A0028V

Name: SHBC12-1R0A0028V
Brand: Kemet
SKU: 1272742
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHBC12-1R0A0028V
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SHBC
Package	Bulk
Type	Toroidal
Material - Core	Alloy Powder
Inductance	28 µH
Tolerance	±20%
Current Rating (Amps)	5 A
Shielding	Unshielded
DC Resistance (DCR)	21.1mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	Radial
Dimension	1.024" Dia (26.00mm)
Height - Seated (Max)	1.024" (26.00mm)
Base Product Number	SHBC12
Other Names	399-19137,UALS121R0A0028
Standard Package	240
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272742-SHBC12-1R0A0028V
Ultra Librarian 3D Model	Ultra Librarian SHBC12-1R0A0028V CAD Model

Alternative Products

Description

The KEMET 1272742-SHBC12-1R0A0028V is a toroidal fixed inductor that is part of the SHBC series.

Package Type: Bulk
Shielding: Unshielded
Inductance: 28 µH
Tolerance: ±20%
Height: 1.024" (26.00mm)
DC Resistance: 21.1mOhm Max
