Same model may have multiple batches, images only for reference.

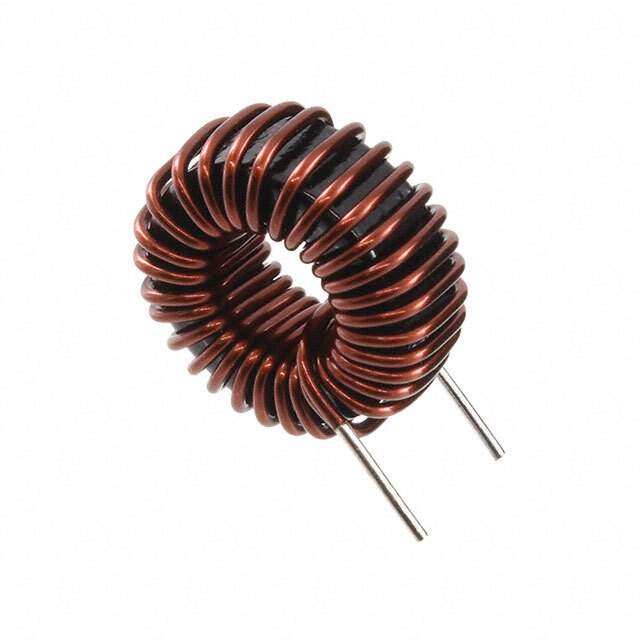

SNT-S30TF Real Image
Same model may have multiple batches, images only for reference.

SNT-S30TF

Part No SNT-S30TF
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S30TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 13 µH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 95Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names 399-SNT-S30TFTB,UDLSNT0S30TF00
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276811-SNT-S30TF
Ultra Librarian 3D Model Ultra Librarian SNT-S30TF CAD Model

Description

The KEMET 1276811-SNT-S30TF is a common mode choke filter for signal line use.

  • Height: 0.500" (12.70mm)
  • Lines: 2
  • Maximum Current Rating: 500mA
  • Package/Case: Vertical, 2 PC pin
  • Mounting: Through hole
  • Temperature Range: -20°C to 60°C
  • Inductance: 13 µH @ 100 kHz
  • DC Resistance (DCR): 95Ohm
  • ECCN: EAR99
