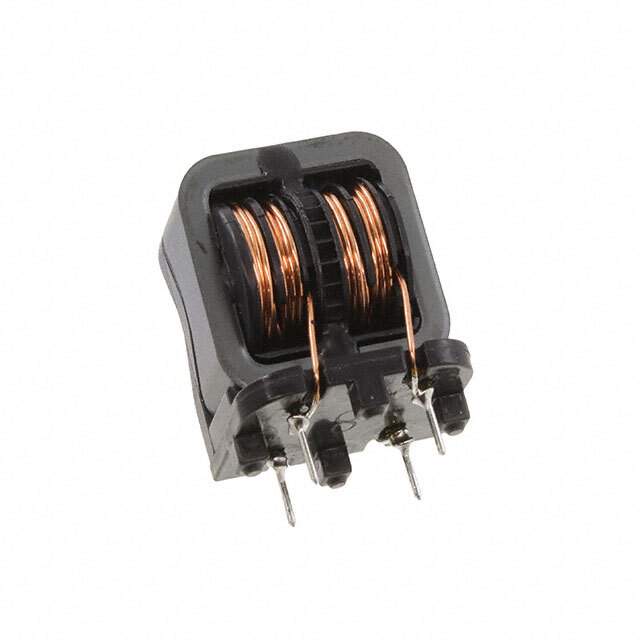

SSRH24NV-35086 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NV-35086

Part No SSRH24NV-35086
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 8.6 mH @ 10 kHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 78mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24V3508600,399-19070
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276525-SSRH24NV-35086
Ultra Librarian 3D Model Ultra Librarian SSRH24NV-35086 CAD Model

Description

The SSRH24NV-35086 is a common mode choke filter designed by KEMET.

  • Current Rating (Max): 3.5A
  • Voltage Rating: 250V AC
  • Height: 1.220" (31.00mm)
  • Package: 240
  • Temperature Range: -25°C to 120°C
