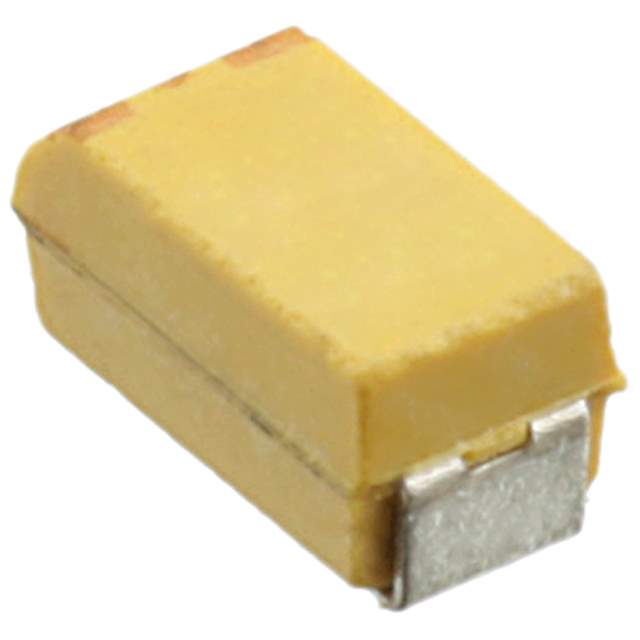

The T494A225K020AT is a surface-mount solid tantalum capacitor manufactured by Kemet. It is designed for general-purpose applications requiring stable capacitance and reliable performance. The code breaks down as follows: T494 series, A case size, 2.2uF capacitance, 10% tolerance (K), and 20V voltage rating.

Applications

• Bypass Capacitors: Used to filter noise and provide stable voltage rails in electronic circuits.
• Decoupling Capacitors: Employed to decouple power supplies from digital and analog circuits.
• Filtering Applications: Used in filtering circuits to remove unwanted frequency components.
• Timing Circuits: Can be used in timing circuits and oscillators.
• General-Purpose Circuits: Found in a variety of electronic circuits requiring a stable and reliable capacitor.

Features

• Solid Tantalum Construction: Provides good stability and reliability.
• Surface-Mount Package: Allows for automated assembly and compact designs.
• 2.2µF Capacitance: Offers a moderate capacitance value for various applications.
• ±10% Tolerance: Offers acceptable accuracy for many general-purpose applications.
• 20V Voltage Rating: Suitable for circuits with voltages up to 20V.
• RoHS Compliant: Environmentally friendly, meeting RoHS requirements.

Benefits

• Stable Performance: Provides consistent and stable capacitance values over time.
• Reliable Operation: Solid tantalum construction ensures reliable operation in harsh environments.
• Compact Size: Surface-mount package allows for compact circuit designs.
• Cost-Effective: Offers a good balance of performance and price.
• Wide Availability: Readily available from various distributors.

Additional Details

The T494A225K020AT comes in a standard EIA case size (e.g., 1206 or 0805). The operating temperature range is typically -55°C to +125°C. The dissipation factor (DF) and equivalent series resistance (ESR) are important parameters to consider for high-frequency applications. The datasheet should be consulted for exact specifications, including the ripple current rating and other performance characteristics. Tantalum capacitors are polarized devices, so proper orientation is critical.
