Same model may have multiple batches, images only for reference.

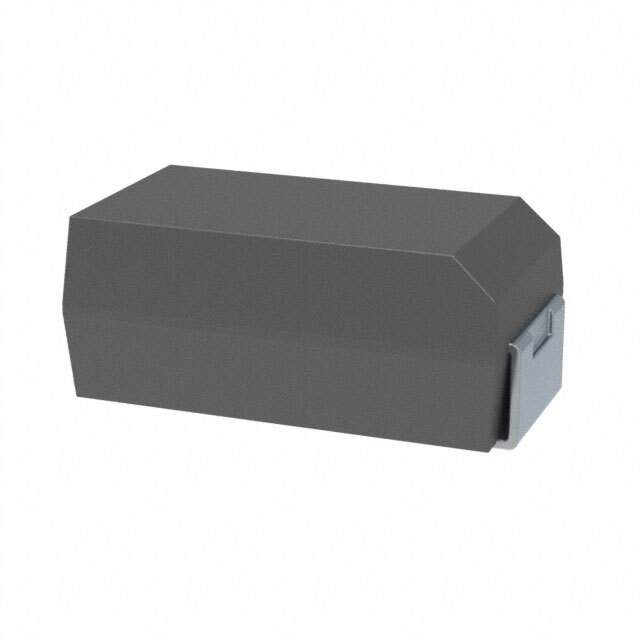

T520C226M016ATE080 Real Image
Same model may have multiple batches, images only for reference.

T520C226M016ATE080

Part No T520C226M016ATE080
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 22UF 16V 2312
Datasheet
T520C226M016ATE080 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 48 Weeks
Features 22 µF Molded Tantalum Polymer Capacitor 16 V 2312 (6032 Metric) 80mOhm @ 100kHz
Manufacturer Kemet
Series KO-CAP® T520
Package Reel - TR
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount
Package 2312 (6032 Metric)
Family Name T520C
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 399-5119-6, 399-5119-1, 399-5119-2
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936012-T520C226M016ATE080
Ultra Librarian 3D Model Ultra Librarian T520C226M016ATE080 CAD Model

Description

The T520C226M016ATE080 is a KO-CAP® T520 series of molded tantalum polymer capacitor manufactured by Kemet.

  • Capacitance: 22μF
  • Voltage Rating: 16V
  • Package: 2312 (6032 Metric)
  • Mounting: Surface Mount
  • Supply and Demand Status: Balanced
  • Package Quantity: 500
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
