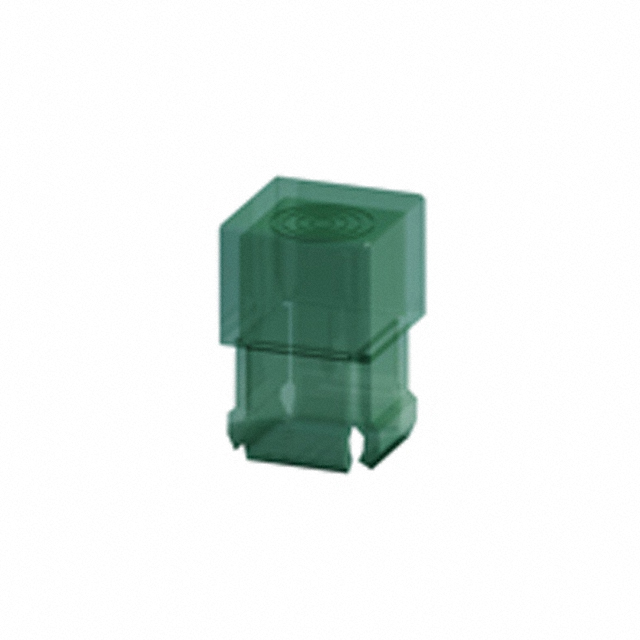

Same model may have multiple batches, images only for reference.
8689 Keystone Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8689

Part No 8689
Manufacturer Keystone Electronics
Catalog Optics - Lenses
Description LENS CLR 180DEG FRESNEL RING SNP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Lens Cap
Color Clear
Number of LEDs 1
Lens Style Square with Domed Top
Lens Size 7.1mm x 7.1mm
Lens Transparency Clear
Optical Pattern Fresnel Ring
Viewing Angle 180°
For Use With/Related Manufacturer General Purpose
Material Polycarbonate
Mounting Type Panel Mount, Snap-In
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1566358-8689
Ultra Librarian 3D Model Ultra Librarian 8689 CAD Model
