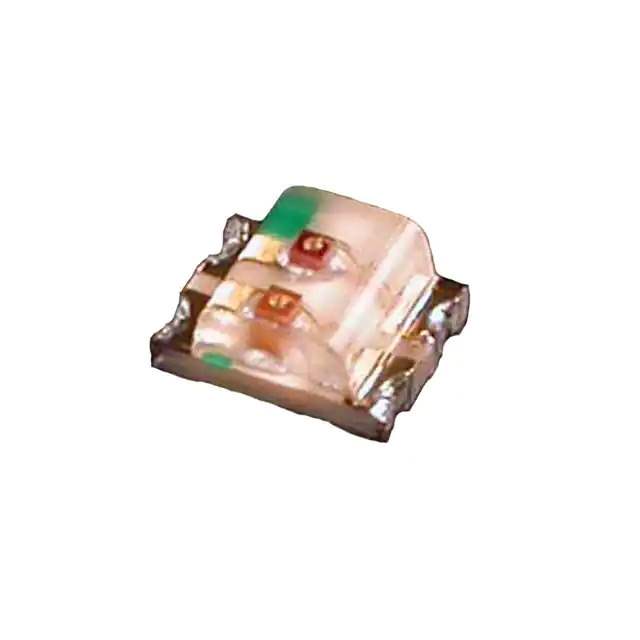

The 564231-APTB1612SURKQBDC-F01 is a blue and red LED indication component from Kingbright Corporation. It is a surface mount LED with a size of 1.60mm L x 1.25mm W.

• Colors: Blue and Red
• Mounting Type: Surface Mount
• Size: 1.60mm L x 1.25mm W
• Viewing Angle: 120 degrees
• Millicandela Rating (Blue): 80mcd
• Millicandela Rating (Red): 80mcd
• Forward Voltage (Vf) (Blue): 3.3V
• Forward Voltage (Vf) (Red): 1.95V
• Current Test: 20mA
• Dominant Wavelength (Blue): 465nm
• Dominant Wavelength (Red): 630nm
• Peak Wavelength (Blue): 460nm
• Peak Wavelength (Red): 645nm
• Height: 0.65mm
• Package: 0605 (1613 Metric)
• Lens Style: Rectangle with Flat Top
• Lens Size: 1.20mm x 1.25mm
• Manufacturer: Kingbright Corporation
