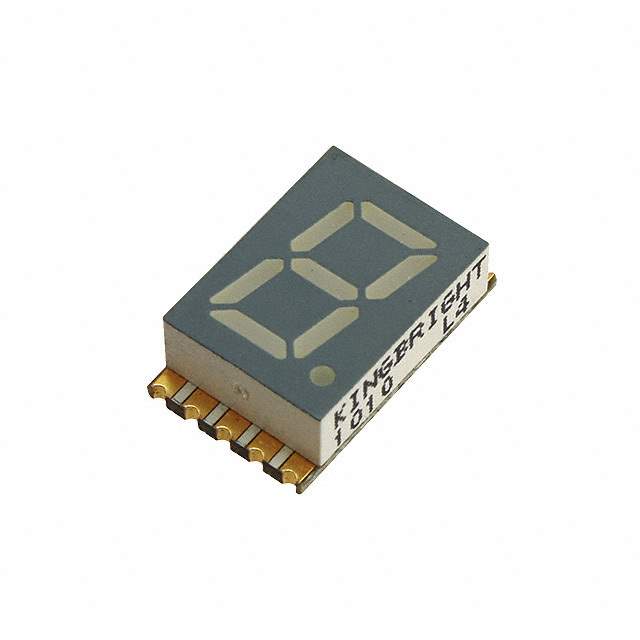

ACSC03-41SGWA-F01 Real Image
Same model may have multiple batches, images only for reference.

ACSC03-41SGWA-F01

Part No ACSC03-41SGWA-F01
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.3" SGL GRN 10SMD / Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.2V 20mA 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) 10-SMD, No Lead
Datasheet
ACSC03-41SGWA-F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Manufacturer Kingbright
Packaging Reel - TR
Number of Characters 1
Size / Dimension 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Millicandela Rating 3.5mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 62.5mW
Case / Package 10-SMD, No Lead
Base Product Number ACSC03
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1038-2,ACSC0341SGWAF01,754-1038-6,754-1038-1
Standard Package 550
Win Source Part Number 1331749-ACSC03-41SGWA-F01
Ultra Librarian 3D Model Ultra Librarian ACSC03-41SGWA-F01 CAD Model

Description

The Kingbright ACSC03-41SGWA-F01 is a 7-segment display module that comes in a 10-SMD, no lead package.

  • Common Cathode: Yes
  • Millicandela Rating: 3.5mcd
  • Display Color: Green
  • Forward Voltage: 2.2V
  • Maximum Power Dissipation: 62.5mW
  • Display Size: 0.30 inches (7.62mm)
  • Digit/Alpha Size: 0.148 inches (3.75mm)

The ACSC03-41SGWA-F01 is a great option for designers looking for a reliable and efficient display module for their electronic projects.
