Same model may have multiple batches, images only for reference.

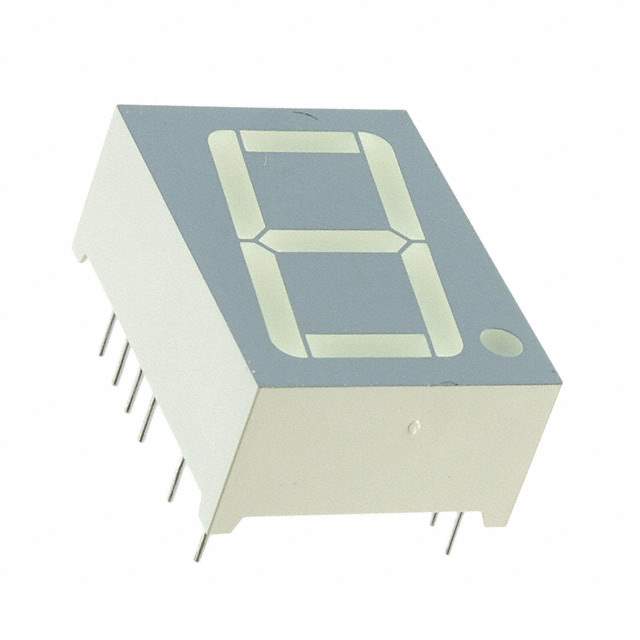

SA08-21SRWA Real Image
Same model may have multiple batches, images only for reference.

SA08-21SRWA

Part No SA08-21SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.8" SGL RED 18DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) 18-DIP (0.600", 15.24mm), 15 Leads
Datasheet
SA08-21SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm)
Digit/Alpha Size 0.80" (20.32mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Millicandela Rating 36mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 18-DIP (0.600", 15.24mm), 15 Leads
Base Product Number SA08-21
Other Names 754-1680-5,Q6198799,SA08-21SRWA,SA0821SRWA
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242562-SA08-21SRWA
Ultra Librarian 3D Model Ultra Librarian SA08-21SRWA CAD Model

Description

The SA08-21SRWA is an obsolete optoelectronic display module from Kingbright.

  • Display Type: 7-Segment
  • Characters: 1
  • Color: Red
  • Millicandela Rating: 36mcd
  • Forward Voltage: 1.85V
  • Power Dissipation: 75mW
  • Common Pin: Common Anode
  • Package: Tube (20 standard packages)
  • Dimension: 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm)
