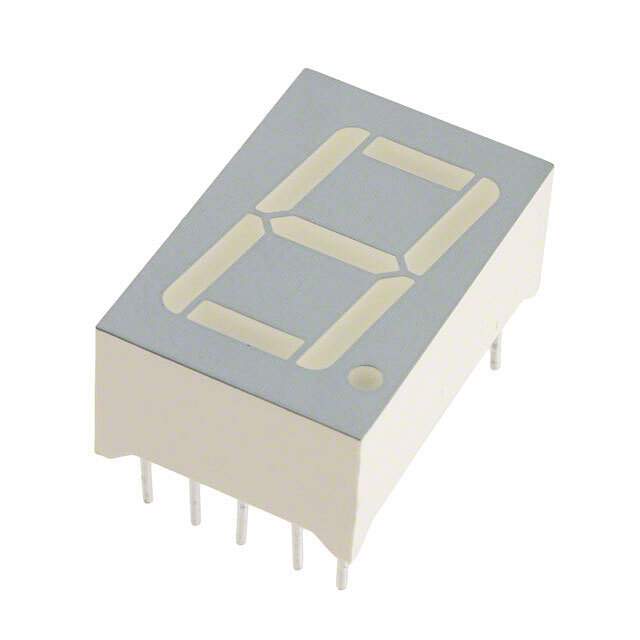

SA56-11YWA Real Image
Same model may have multiple batches, images only for reference.

SA56-11YWA

Part No SA56-11YWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL YLW 10DIP  /  Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Datasheet
SA56-11YWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Yellow
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 6.5mcd
Wavelength - Peak 590nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SA56-11
Other Names 754-1695-5,SA56-11YWA
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242640-SA56-11YWA
Ultra Librarian 3D Model Ultra Librarian SA56-11YWA CAD Model

Description

The Kingbright SA56-11YWA is a 7-segment LED display module that is designed for numeric and alphanumeric displays.

  • Color: Yellow
  • Peak Wavelength: 590nm
  • Digit/Alpha Size: 0.56 inches (14.22mm)
  • Millicandela Rating: 6.5mcd
  • Forward Voltage (Vf): 2.1V
  • Maximum Power Dissipation: 75mW
  • Mounting Type: Through-hole
  • Package/Case: 10-DIP (0.600 inches, 15.24mm)
  • Use: Ideal for use in various electronic devices
