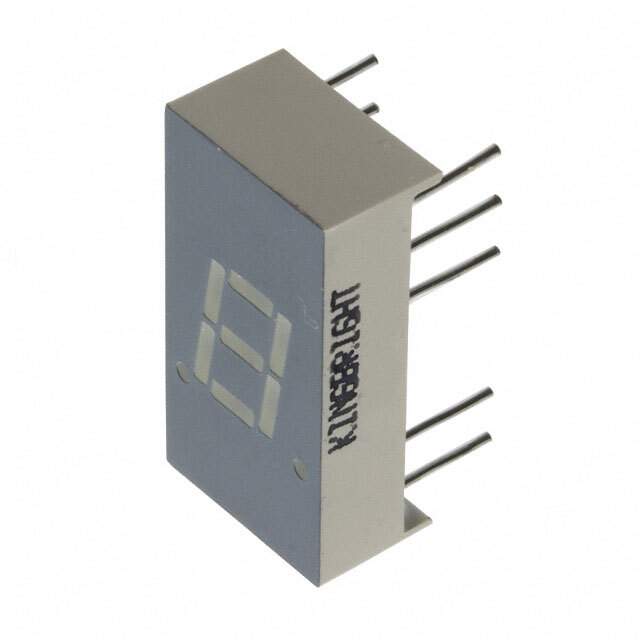

SC03-12EWA Real Image
Same model may have multiple batches, images only for reference.

SC03-12EWA

Part No SC03-12EWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.3" SGL RED 14DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
Datasheet
SC03-12EWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 8.1mcd
Wavelength - Peak 627nm
Power Dissipation (Max) 75mW
Package / Case 14-DIP (0.300", 7.62mm)
Base Product Number SC03-12
Other Names SC0312EWA,754-1461-5
Standard Package 26
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242658-SC03-12EWA
Ultra Librarian 3D Model Ultra Librarian SC03-12EWA CAD Model

Description

The Kingbright 7-segment LED display module is a red, 627nm peak wavelength product.

  • Peak Wavelength: 627nm
  • Package: Tube
  • Standard Package: 26 pieces
  • Millicandela Rating: 8.1mcd
  • Voltage-Forward (Vf): 2V (typical)
  • Current-Test: 20mA
  • Power Dissipation (max): 75mW
  • Common Cathode: Yes
  • Package/Case: 14-DIP (0.300", 7.62mm)
  • Dimension: 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm)
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8541.41.0000
  • Other Names: SC0312EWA, 754-1461-5
