Same model may have multiple batches, images only for reference.

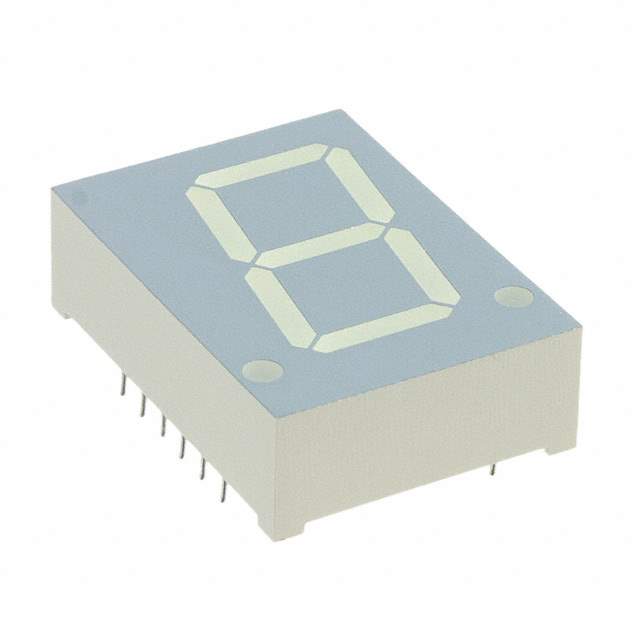

SC08-11SRWA Real Image
Same model may have multiple batches, images only for reference.

SC08-11SRWA

Part No SC08-11SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.8" SGL RED 18DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads
Datasheet
SC08-11SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm)
Digit/Alpha Size 0.80" (20.32mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Millicandela Rating 36mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 16-DIP (0.600", 15.24mm), 13 Leads
Base Product Number SC08-11
Other Names SC08-11SRWA,754-1698-5
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242561-SC08-11SRWA
Ultra Librarian 3D Model Ultra Librarian SC08-11SRWA CAD Model

Description

The Kingbright SC08-11SRWA is a red display module-LED character and numeric component.

  • Win Source Part Number: 1242561-SC08-11SRWA
  • Millicandela Rating: 36mcd
  • Voltage-Forward (Vf) (Typ): 1.85V
  • Current-Test: 20mA
  • Wavelength-Peak: 660nm
  • Power Dissipation (Max): 75mW
  • Display Type: 7-Segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.80" (20.32mm)
  • Common Pin: Common Cathode
  • Package/Case: 16-DIP (0.600", 15.24mm), 13 Leads
  • Dimension: 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
  • Other Names: SC08-11SRWA, 754-1698-5
  • Base Product Number: SC08-11
  • Status: Obsolete
