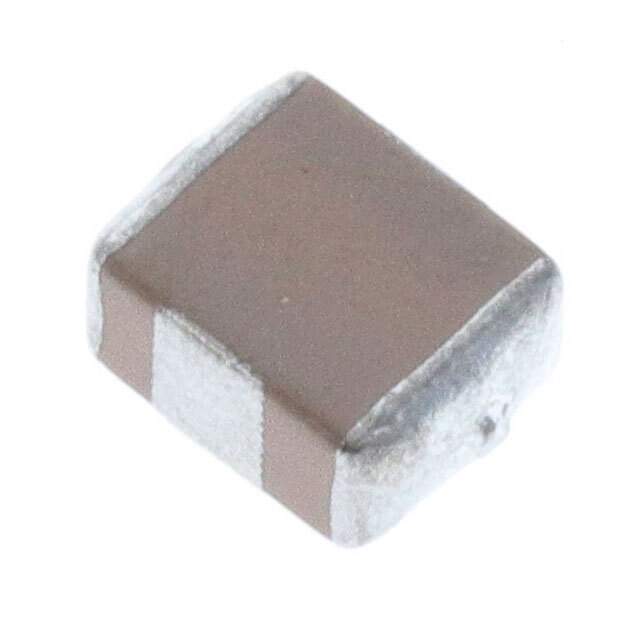

Same model may have multiple batches, images only for reference.

SBSMP0500474MXT

Name: SBSMP0500474MXT
Brand: Knowles Syfer
SKU: 793898
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SBSMP0500474MXT
Manufacturer	Knowles Syfer
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	SURFACE MOUNT C AND PI FILTER / EMI Filter Pi-Circuit 10A 50VDC Flat Style SMD T/R
Datasheet	SBSMP0500474MXT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Knowles Syfer
Series	SBSM
Type	Low Pass
Filter Order	3rd
Technology	LC (Pi)
Number of Channels	1
Attenuation Value	44dB @ 100MHz
Current	20A
Values	C = 0.47μF
ESD Protection	No
Operating Temperature Range	-55°C ~ 125°C
Applications	General
Voltage Rating DC	50V
Mounting	SMD
Package	2220 (5750 Metric), 3 PC Pad
Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Height	0.133" (3.38mm)
Win Source Part Number	793898-SBSMP0500474MXT
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	500
Family Name	SBSM
Introduction Date	March 26, 2007
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian SBSMP0500474MXT CAD Model

Alternative Products

Description

The Knowles Syfer 793898-SBSMP0500474MXT is a low pass filter.

Filter Order: 3rd Order
Attenuation Value @ 100MHz: 44dB
Center/Cutoff Frequency: -
Resistance Channel (Ohms): -
Series: SBSM
Voltage Rating - DC: 50V
Height: 0.133" (3.38mm)
Package / Case: 2220 (5750 Metric), 3 PC Pad
Filter Type: LC (Pi)
Current: 20A
Family Name: SBSM
Supply and Demand Status: Limited
Quantity per Package: 500
