Same model may have multiple batches, images only for reference.

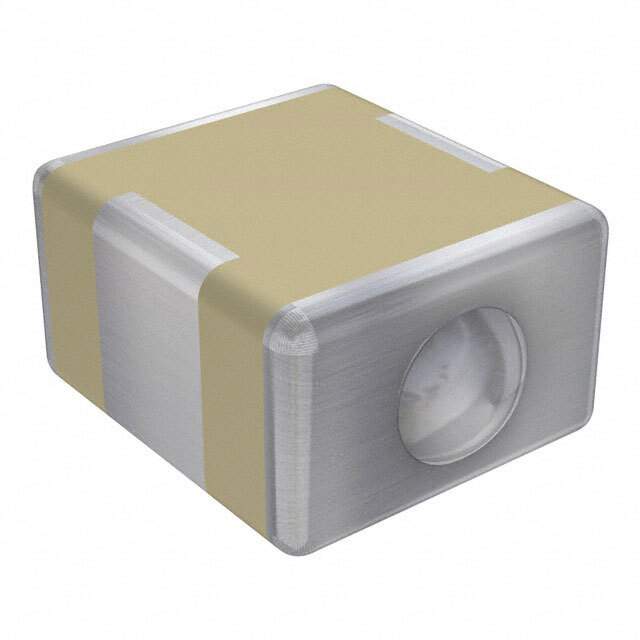

SBSMP5000472MXT Real Image
Same model may have multiple batches, images only for reference.

SBSMP5000472MXT

Part No SBSMP5000472MXT
Manufacturer Knowles Syfer
Catalog EMI/RFI Filters (LC, RC Networks)
Datasheet
SBSMP5000472MXT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Knowles Syfer
Series SBSM
Package Tape & Reel
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 44dB @ 100MHz
Current 10 A
Values C = 4700pF
ESD Protection No
Applications General Purpose
Voltage - Rated 500V
Mounting SMD (SMT)
Package / Case 2220 (5750 Metric), 3 PC Pad
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height 0.130" (3.30mm)
Base Product Number SBSMP
Other Names 1608-1201-2,1608-1201-1,1608-1201-6,1608-1201-3,1608-1201-3
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276438-SBSMP5000472MXT
Ultra Librarian 3D Model Ultra Librarian SBSMP5000472MXT CAD Model

Description

The SBSM series EMI/RFI filter from Knowles Syfer is a high-quality electronic component designed for use in various electronic applications.

  • Manufacturer: Knowles Syfer
  • Filter Type: Low Pass
  • Capacitance: 4700pF
  • Voltage Rating: 500V
  • Package / Case: 2220 (5750 Metric), 3 PC Pad
  • Mounting Type: SMD (SMT)
  • Attenuation: 44dB @ 100MHz
  • Current Rating: Up to 10A
  • Height: 0.130 inches (3.30mm)
  • Technology: LC (Pi)
  • Application: General-purpose
